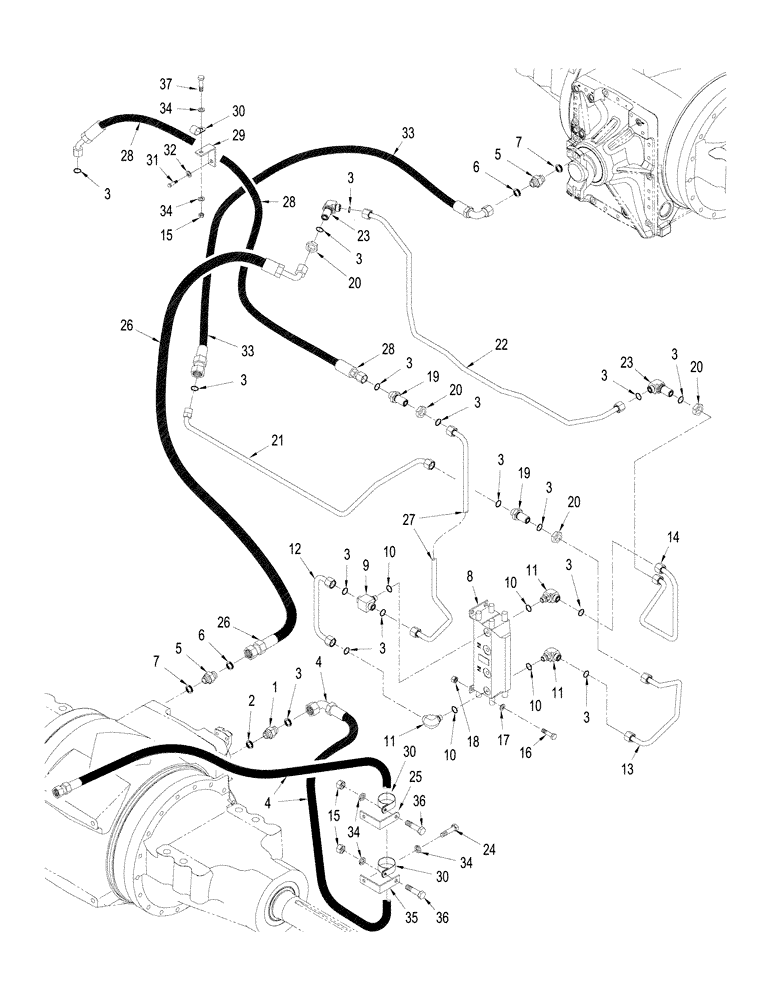

Запчасти Case IH STEIGER 335 (08-07) - AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 2 and 3
1шт.
2
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
4
436926A1
HOSE ASSY.
2045 mm ( 81")
1шт.
5
700-162
HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
Inc. 6 and 7
2шт.
7
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
2шт.
8
434727A1
MOTOR-PUMP
Axle Air/Lube
1шт.
9
87323932
FITTING
Special, 1/2" or x fc sl, Inc. 3 and 10
1шт.
10
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
2шт.
11
201-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 3 and 10
3шт.
12
449794A1
TUBE
1шт.
13
86988498
TUBE,12.70 mm OD
1шт.
14
86988496
TUBE,12.70 mm OD
1шт.
15
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
9шт.
16
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
4шт.
18
829-1310
NUT,M10, Cl 10
4шт.
19
701-121
UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
Inc. 3
3шт.
20
701-903
NUT,13/16" - 16
4шт.
21
86988505
TUBE,12.70 mm OD
1шт.
22
86988503
TUBE,12.70 mm OD
1шт.
23
701-301
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
Incl. 3
2шт.
24
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
5шт.
25
369960A1
BRACKET
Support
1шт.
26
86990405
HOSE ASSY.
1753 mm (69"), Rear Axle to Air/Lube Pump
1шт.
27
87323936
TUBE,12.70 mm OD
1шт.
28
87447885
HOSE ASSY.
1178 mm (46-3/8")
1шт.
29
416102A1
SUPPORT
Bracket
1шт.
30
515-22190
CLAMP,3/4", Insul, 5/16" Bolt
3шт.
31
514-842
BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
33
86990404
HOSE ASSY.
1765 mm (69-1/2"), Front Axle to Air/Lube Pump
1шт.
34
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
5шт.
35
416512A1
BRACKET
1шт.
Выбрано товаров: 35
