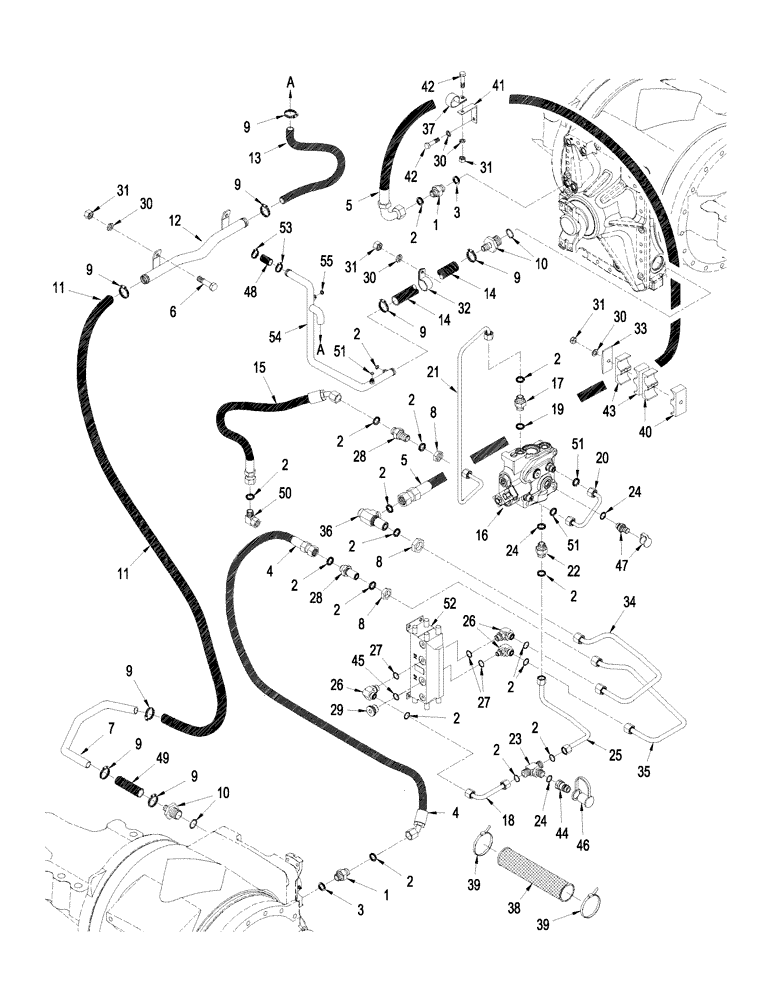

Запчасти Case IH STEIGER 335 (08-05) - AXLE HYDRAULICS - LUBRICATION CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360201A4

HOSE ASSY.

1925 mm (75-1/2"), Air/Lube Pump to Rear Axle

1шт.

5

87313932

HOSE

2080 mm (82"), Air/Lube Pump to Front Axle

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

7

416278A1

TUBE

Drain, Rear Axle

1шт.

8

701-903

NUT,13/16" - 16

3шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

Axle Drain

2шт.

11

370250A1

HOSE

990 mm (39"), Cut From S118383, Drain, Rear Axle

1шт.

12

87347801

TUBE,25.40 mm OD

Drain, Rear Axle

1шт.

13

87386393

HOSE

660 mm (26"), Cut From 31-2755, Drain, Rear Axle

1шт.

14

437170A1

HOSE,1.00" ID x 48.00"

Cut from Bulk, Drain, Front Axle

1шт.

15

406045A1

HOSE ASSY.

394 mm (15-1/2")

1шт.

16

87672094

VALVE

Regulator, See Figure: 08-11

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 2 and 19

1шт.

18

87307521

TUBE,9.40 mm ID x 12.70 mm OD

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

1шт.

21

449800A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 and 24

1шт.

23

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 24

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

87307544

TUBE,9.40 mm ID x 12.70 mm OD x 43.00, 64.23 mm L

1шт.

26

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 2, 27

4шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl 45

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

32

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

33

435468A1

PLATE

Support, Hose Clamp

3шт.

34

449813A2

TUBE

Air/ Lube to Front Axle

1шт.

35

449815A2

TUBE

Air/ Lube to Rear Axle

1шт.

36

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 2

1шт.

37

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

38

387840A1

SLEEVE

Protective

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

40

435470A1

CLAMP

Double Hose

6шт.

41

416512A1

BRACKET

Mounting, Hose

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

43

435469A1

CLAMP

Double Hose

6шт.

44

392690A1

COUPLING

Diagnostic, Inc. 3

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

46

399032A1

CAP

Dust

1шт.

47

358968A1

FITTING

Diagnostic, M18 orb x 1.5, Inc. 24

1шт.

48

1-4571

HOSE

114 mm (4-1/2"), Cut from 1-4482T1

1шт.

49

435457A1

HOSE,1.00" ID x 4.00"

Cut from Bulk

1шт.

50

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 2

1шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

52

434727A1

MOTOR-PUMP

Axle Air/ Lube

1шт.

53

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

54

87368178

TUBE,38.1 mm OD

Return

1шт.

55

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
