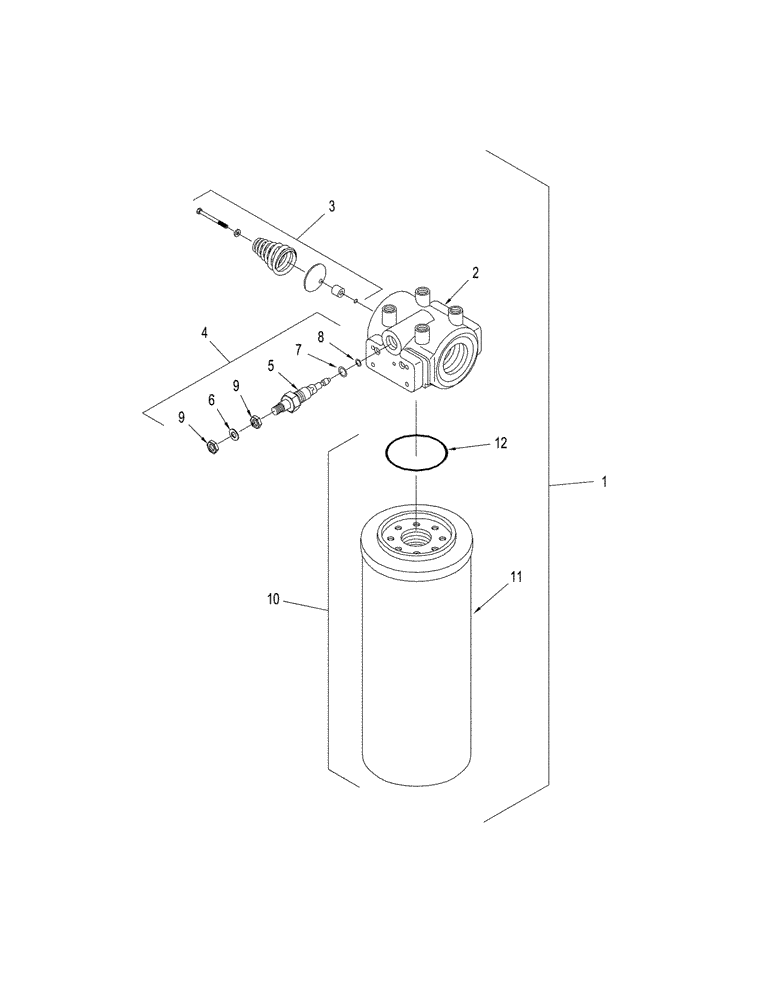

Запчасти Case IH STEIGER 335 (08-04) - OIL FILTER - MAIN HYDRAULIC (BELOW BATTERY) (08) - HYDRAULICS

1

86991559

FILTER ASSY

Main Hydraulic Oil, Inc. 2 - 12

1шт.

2

87409342

FILTER HEAD

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Bypass

1шт.

4

N6755

PRESSURE SWITCH

Restriction, Inc. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Indicator

1шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

9

129-667

NUT,#10-32, LH

2шт.

10

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Inc. 8 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

Element

1шт.

12

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

1шт.
