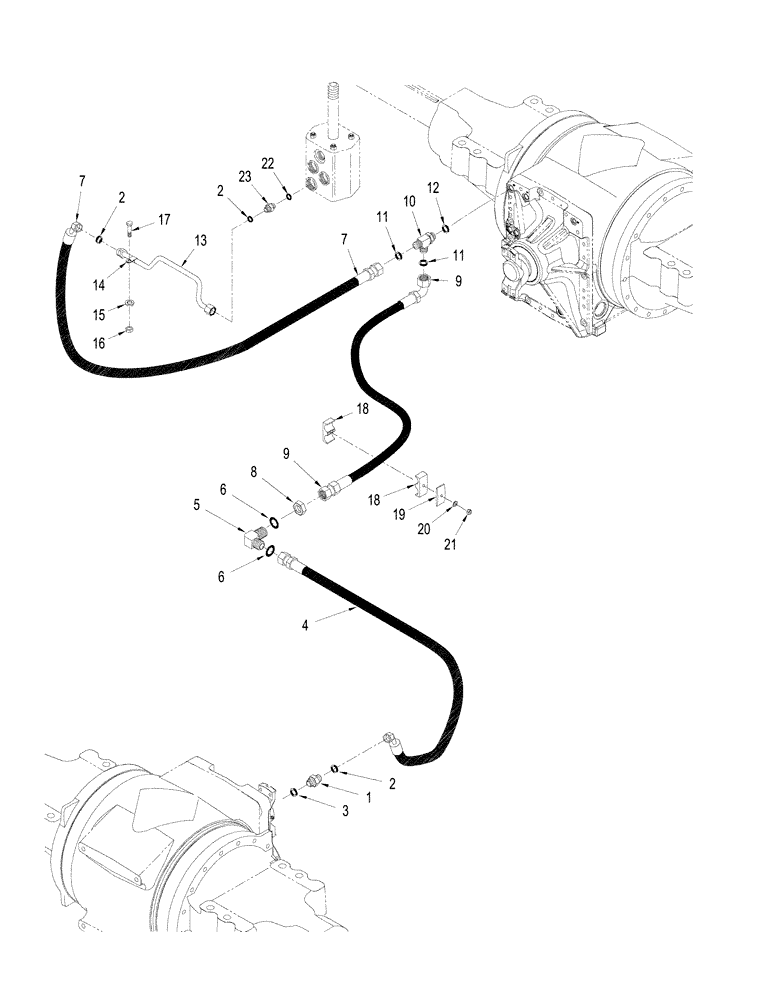

Запчасти Case IH STEIGER 335 (07-04) - SERVICE BRAKE CIRCUIT, WITH ACCUSTEER (07) - BRAKES

1

401760A1

VALVE

Check, Inc. 2 & 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360203A3

HOSE ASSY.

1803 mm (71"), to Rear Axle Service Port

1шт.

5

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

87309667

HOSE

1152 mm (45-3/8"), Brake Valve to Front Axle Service Port

1шт.

8

701-903

NUT,13/16" - 16

1шт.

9

361951A2

HOSE ASSY.

1677 mm (66"), Front Axle to Rear Axle

1шт.

10

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 11 & 12

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

87309665

TUBE,12.70 mm OD

Brake Valve to Front Axle

1шт.

14

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

50-2551T1

CLAMP

Tube

4шт.

19

50-2533T1

PLATE

Cover

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 & 23

1шт.
