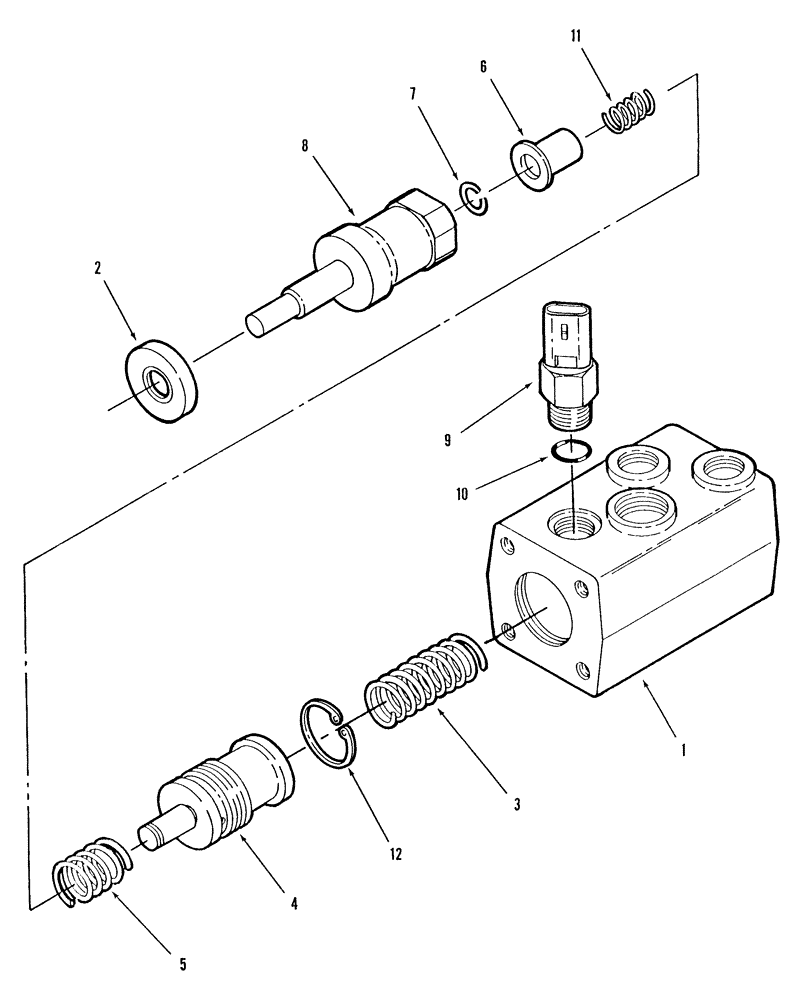

Запчасти Case IH STEIGER 335 (07-02) - BRAKE VALVE ASSY (07) - BRAKES

302822A3

VALVE

Brake Assy., Inc. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Brake Valve

1шт.

2

195806A1

OIL SEAL,15.88mm ID x 38.18mm OD x 7.92mm Thk

1шт.

3

185613A1

SPRING

1шт.

4

280297A1

SPOOL

1шт.

5

291105A1

SPRING

Outer

1шт.

6

291107A1

RETAINER

1шт.

7

229659A1

SNAP RING

1шт.

8

291106A1

STEM

1шт.

9

279266A1

SWITCH

Brake, Incl 10

1шт.

10

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

11

291104A1

SPRING

1шт.

12

100-21150

SNAP RING,1.50", Int, #150

1шт.
