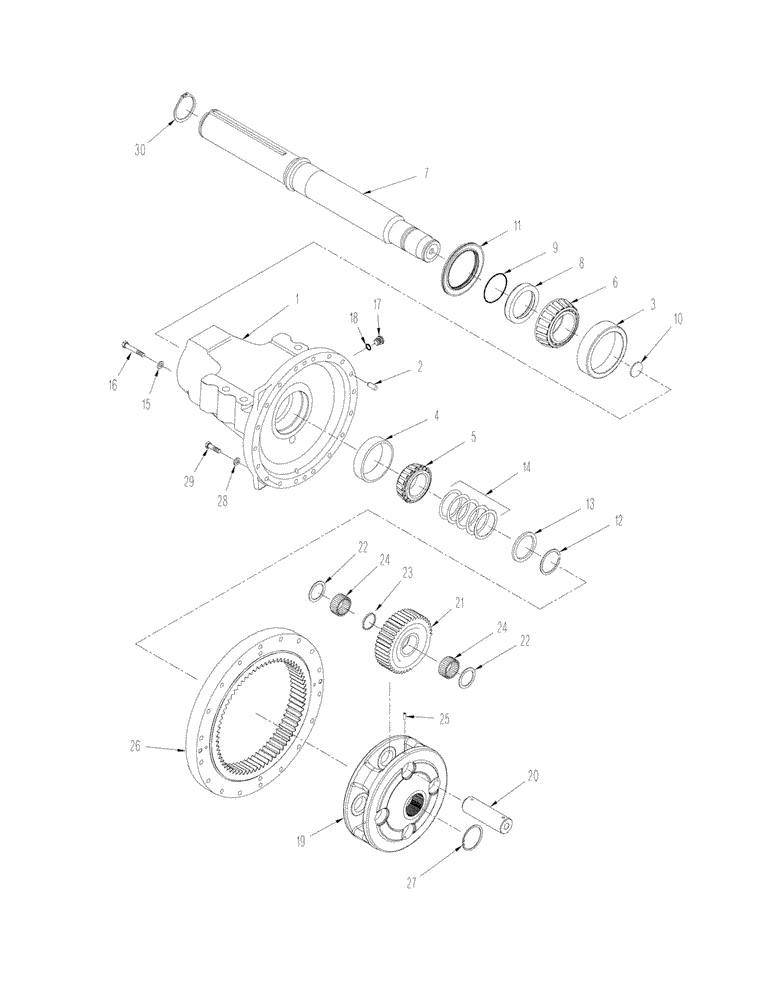

Запчасти Case IH STEIGER 335 (06-64) - AXLE ASSEMBLY - FINAL DRIVE, HEAVY DUTY (06) - POWER TRAIN

398438A1

AXLE HOUSING

115 mm (4.5"), Inc. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Axle

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

1шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

1шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

84225937

SHAFT

Axle, 115 mm (4.5"), Inc. 7 - 10

2шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Axle, 115 mm ( 4.5")

1шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

Outboard

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

1шт.

11

84225952

OIL SEAL,152.7mm ID x 214.31mm OD x 20.5mm Thk

1шт.

12

243856A1

RING, SNAP

RING SNAP

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Incl. 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

388370A1

PINION CARRIER

GEAR CARRIER Planetary

1шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planetary

4шт.

21

310694A2

PLANETARY GEAR,29T

29 T

4шт.

22

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

8шт.

23

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

4шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

8шт.

25

838-3826

PIN,M8 x 26, Coiled

4шт.

26

360761A1

GEAR, RING

RING, GEAR 77 T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

18шт.

30

800-11115

SNAP RING,M115, Ext

Axle

4шт.
