Запчасти Case IH STEIGER 335 (06-58) - AXLE ASSEMBLY - COVER, REAR AXLE (06) - POWER TRAIN

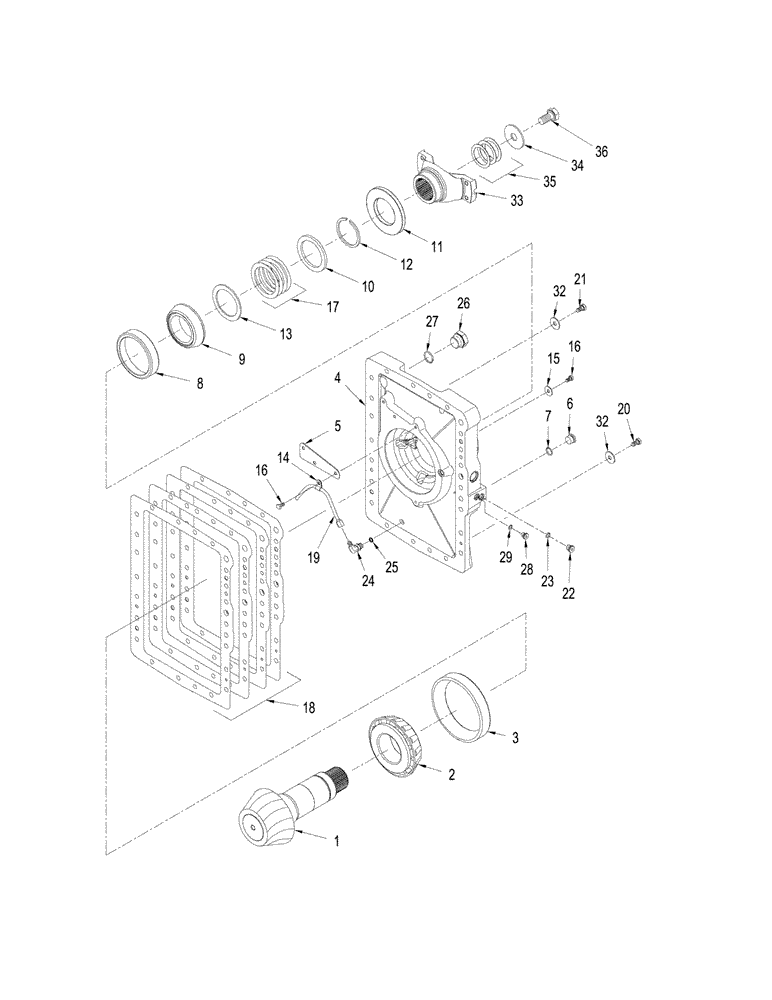

Схема запчастей Case IH STEIGER 335 - (06-58) - AXLE ASSEMBLY - COVER, REAR AXLE (06) - POWER TRAIN
2
10
24
6
20
9
35
36
33
16
16
22
5
17
18
7
27
28
8
1
32
13
29
26
11
12
23
3
14
21
34
25
19
4
32
15

Артикул

Название

Примечание

Количество

302260A1

GEAR SET

Pinion Shaft, See Figures: 6-57 & 6-60 , Inc. 1

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft, Pinion, 12 T / 53 T

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

86985626

COVER

Rear Axle

1шт.

5

246146A1

BAFFLE

1шт.

6

86625138

PLUG,7/18" - 14

Inc. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

228968A2

SPACER

Thick

1шт.

11

87432424

OIL SEAL

1шт.

12

229515A1

RING, SNAP

RING SNAP M4

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

226492A2

SHIM,0.076mm Thk

1шт.

18

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

18

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

18

226496A2

SHIM,0.508mm Thk

1шт.

19

234432A1

TUBE

Lubrication

1шт.

20

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

22

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl. 23

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

24

86985636

ELBOW

Orificed, 5/16" x 3/8", Inc. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

220069A1

PLUG,M33 x 2, ORB

Incl. 27

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 29

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Incl. 31

1шт.

31

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

32

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

33

395207A1

YOKE

UNIVERSAL JOINT YOKE 8C

1шт.

36

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

34

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

35

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

35

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

35

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

35

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

Выбрано товаров: 45
