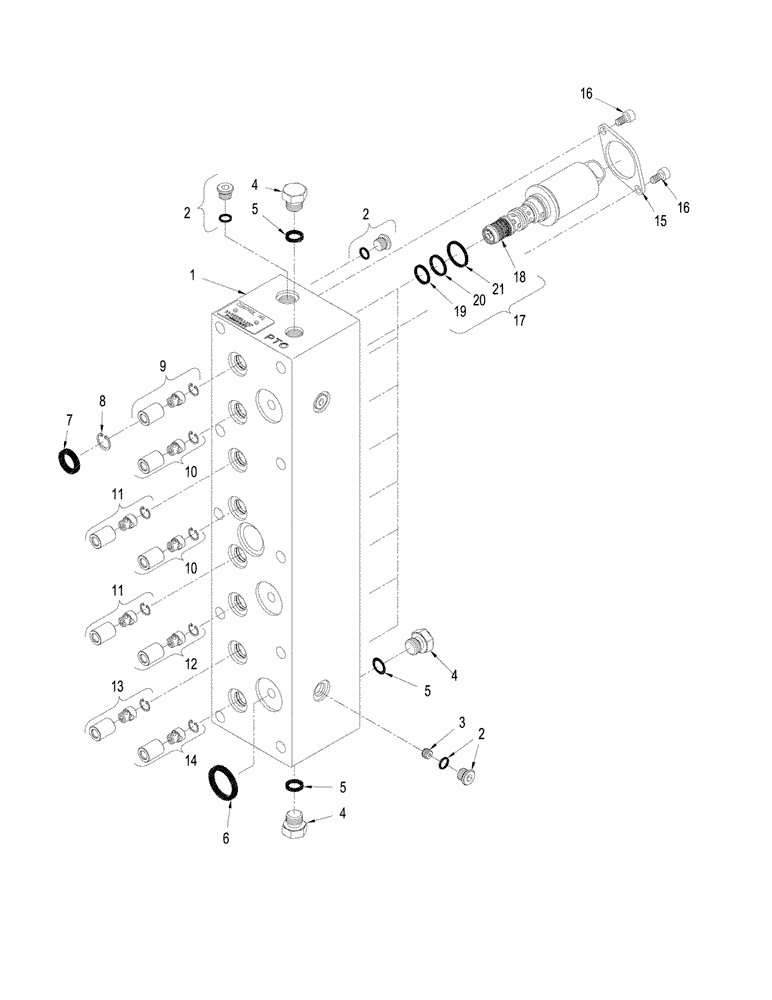

Запчасти Case IH STEIGER 335 (06-55) - POWER SHIFT TRANSMISSION - RANGE SELECTOR VALVE (06) - POWER TRAIN

87350421

VALVE

Range Selector, Inc. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

87350425

STOP PLUG

7шт.

3

87350428

ORIFICE

2шт.

4

220064A1

PLUG,M14 x 1.5, ORB

Incl. 5

10шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

4шт.

7

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

8шт.

8

100-2156

SNAP RING,0.562", Int, #56

8шт.

9

87350429

CHECK VALVE

3,45 mm

1шт.

10

87350431

CHECK VALVE

2,51 mm

2шт.

11

87350432

CHECK VALVE

2,36 mm

2шт.

12

87350433

CHECK VALVE

2,82 mm

1шт.

13

87350434

CHECK VALVE

5,54 mm

1шт.

14

87350435

CHECK VALVE

4,80 mm

1шт.

15

87350463

PLATE

Valve Retainer

8шт.

16

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

16шт.

17

87357396

SOLENOID VALVE

PWM, Inc. 18 - 21

8шт.

18

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

19

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

20

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

21

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.
