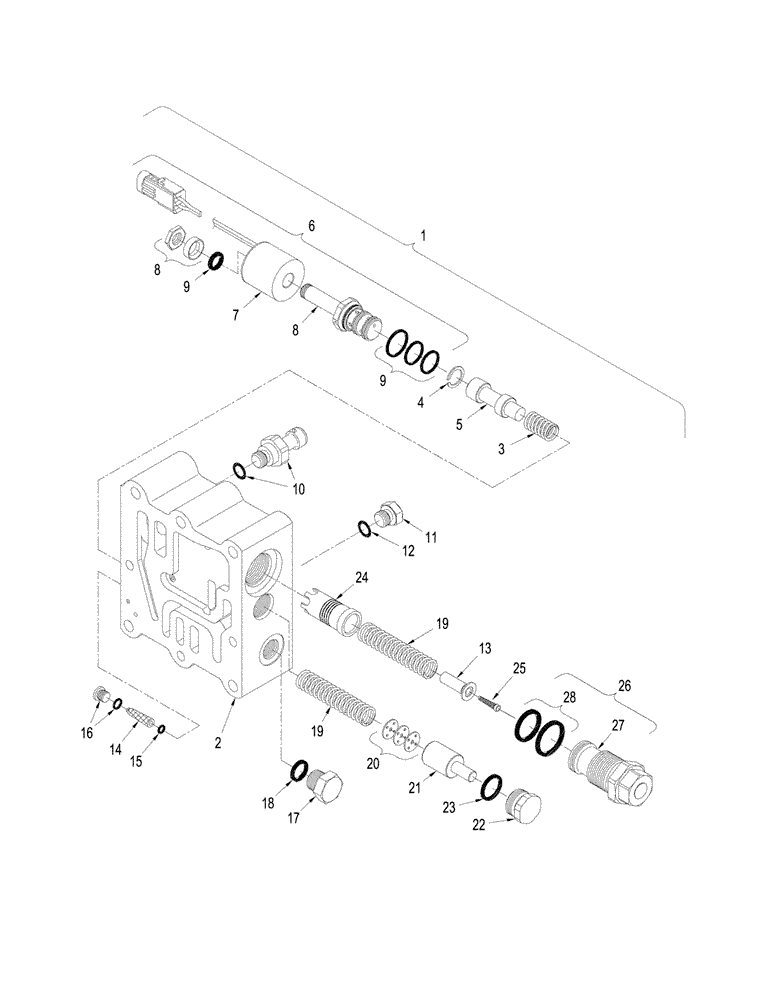

Запчасти Case IH STEIGER 335 (06-54) - POWER SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN

1

87350388

VALVE

Regulator, Inc. 2 - 26

1шт.

1

87350388R

REMAN-HYD VALVE

Steiger 335,

1шт.

1

87350388C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

3

370596A1

SPRING

1шт.

4

428679A1

RING, SNAP

RING SNAP

1шт.

5

370597A1

SPOOL

1шт.

6

371737A1

SOLENOID VALVE

Three way, Inc. 7 - 9

1шт.

6

371737A1R

REMAN-SOLENOID

Three way, Inc. 7 - 9

1шт.

6

371737A1C

CORE-SOLENOID

Return Number

1шт.

7

371739A1

COIL

2шт.

8

370600A1

SOLENOID VALVE

Pilot Assy.

1шт.

9

371738A1

O-RING KIT

O-Ring

1шт.

10

404450A1

SENSOR

Pressure

1шт.

11

220064A1

PLUG,M14 x 1.5, ORB

Incl. 12

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87350417

FILTER COVER

1шт.

14

87409404

FILTER

Conical

1шт.

15

428676A1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

16

428678A1

PLUG

Inc. O-Ring

1шт.

17

220066A1

PLUG,M18 x 1.5, ORB

Incl. 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

398443A1

SPRING

2шт.

20

398445A1

SHIM,0.79mm Thk

1шт.

21

398444A1

VALVE

Spool

1шт.

22

87431407

PLUG

Inc. 23

1шт.

23

87431408

O-RING

1шт.

24

87350419

SPOOL

Main Pressure

1шт.

25

87362229

FILTER SCREEN

1шт.

26

87350395

PILOT VALVE

Inc. 27 - 28

1шт.

27

NSS

NOT SOLD SEPARAT

Valve, Pilot

1шт.

28

87350407

KIT

O-Ring

1шт.
