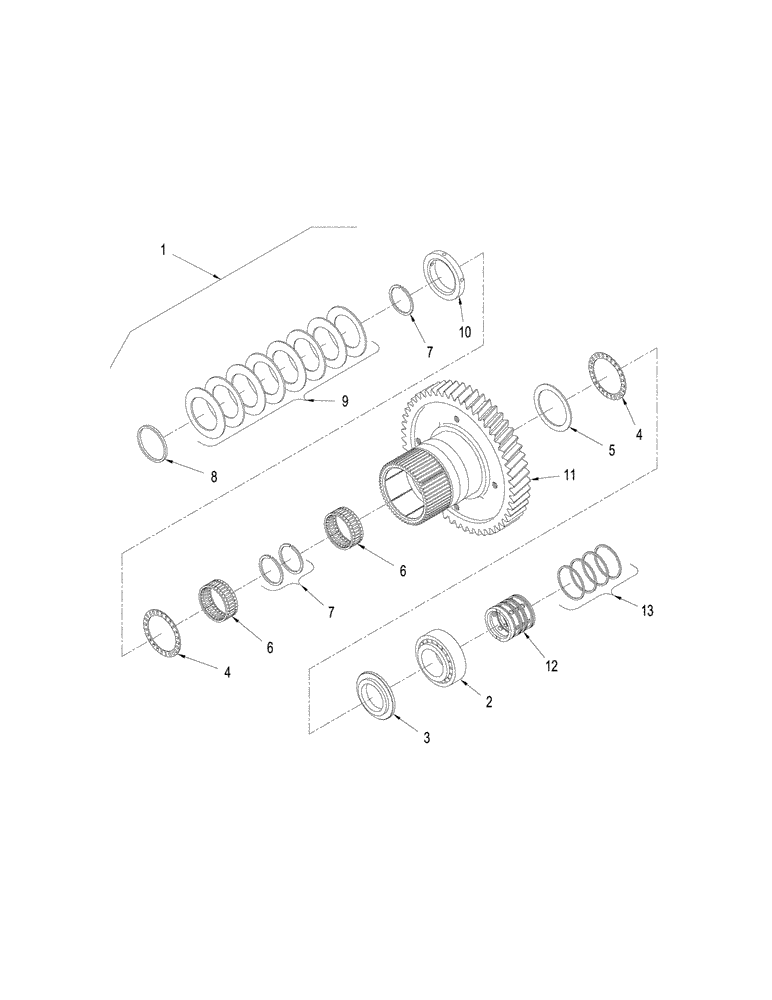

Запчасти Case IH STEIGER 335 (06-53) - POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY (06) - POWER TRAIN

1

87350349

CLUTCH INPUT SHAFT

Fifth, Inc. 2 - 13, Also See Figure: 06-52

1шт.

2

428675A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller

1шт.

3

364831A1

THRUST WASHER

1шт.

4

87640391

THRUST BEARING

2шт.

5

358908A1

THRUST WASHER

1шт.

6

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

1шт.

7

S5040S00F

RING

Retaining

4шт.

8

362611A1

SPACER

Needle Bearing

1шт.

9

364826A1

PLATE

Spring

8шт.

10

87350331

THRUST WASHER

1шт.

11

87350374

DRIVEN GEAR

5F

1шт.

12

370568A1

CARRIER

Piston

1шт.

13

S4150S00F

RING

Seal

4шт.
