Запчасти Case IH STEIGER 335 (06-45) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN

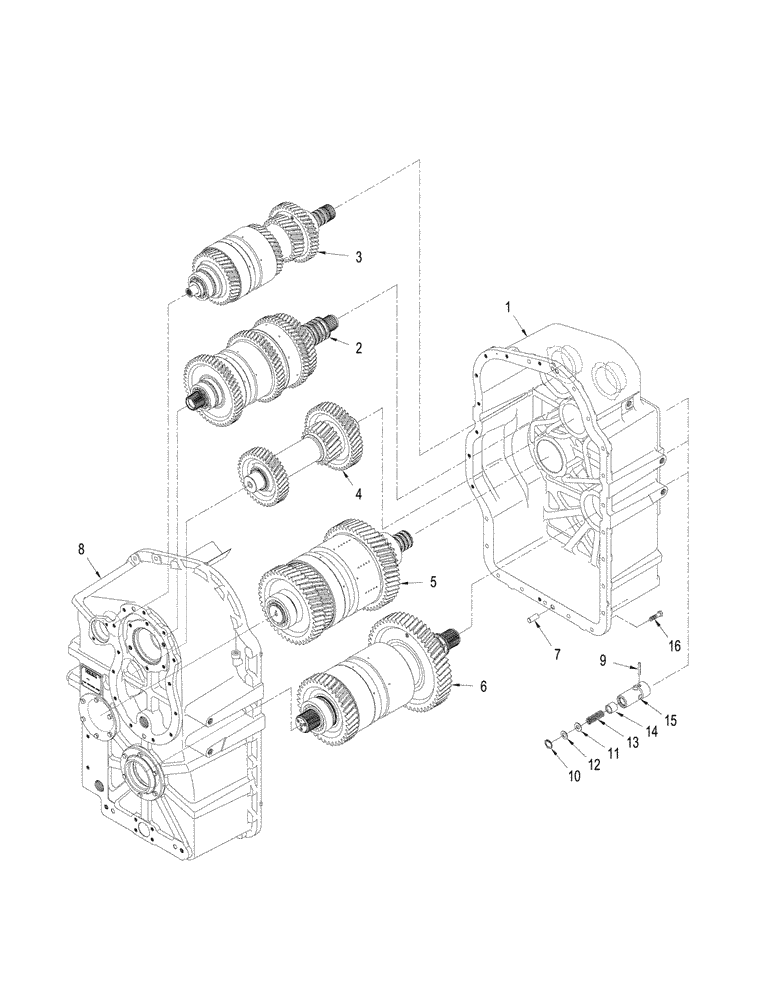

Схема запчастей Case IH STEIGER 335 - (06-45) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN
15
14
11
2
10
9
6
12
8
16
3
4
5
7
1
13

Артикул

Название

Примечание

Количество

87546434

TRANSMISSION

TRANSMISSION, 8.0C Yoke

1шт.

87546434R

REMAN-TRANSMISSION

Remanufactured TRANSMISSION, POWERSHIFT - 7C (6.375 inches) and 8C (8.5 inches) Yoke Machine - Models STX280/330; STX380/430/480 Std Duty; Steiger 335; Steiger 385/435/485 Std Duty. ASN Z6F105039 ONLY, Start Serial: Z6F105039

1шт.

87546434C

CORE-TRANSMISSION

Return Number

1шт.

1

87350479

HOUSING

Front

1шт.

2

87552053

CLUTCH INPUT SHAFT

Input, 7C & 8C, See Figure: 06-46 & 06-47

1шт.

3

87350268

CLUTCH INPUT SHAFT

Second, See Figure: 06-48

1шт.

4

REF

INSTRUCTION

Shaft, Third, Order Components, See Figure: 06-49

1шт.

5

87350312

CLUTCH INPUT SHAFT

Fourth, See Figure: 06-50 & 06-51

1шт.

6

87350349

CLUTCH INPUT SHAFT

Fifth, See Figure: 06-52 & 06-53

1шт.

7

427530A1

DOWEL,14mm OD x 31mm L

2шт.

8

87350466

TRANSMISSION HOUSING

Rear

1шт.

9

838-1318

LOCK PIN,3mm OD x 10mm L, Slotted

4шт.

10

800-2112

SNAP RING,M12, Int

4шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

370542A1

SHIM

4шт.

13

370543A1

SPRING

Valve Check

4шт.

14

370544A1

SPOOL

Drain

4шт.

15

370545A1

CAP

Press

4шт.

16

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

25шт.
