Запчасти Case IH STEIGER 335 (06-43) - POWER SHIFT TRANSMISSION - COVERS AND YOKES (06) - POWER TRAIN

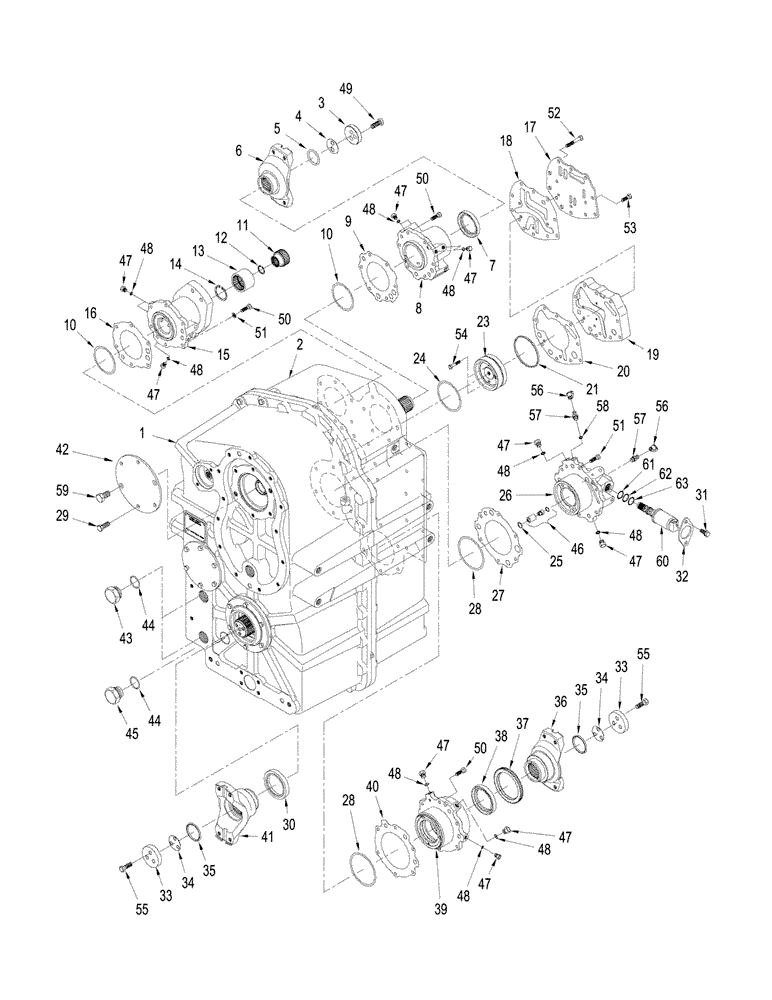

Схема запчастей Case IH STEIGER 335 - (06-43) - POWER SHIFT TRANSMISSION - COVERS AND YOKES (06) - POWER TRAIN
18
60
48
32
11
48
47
10
48
42
10
47
14
30
35
45
34
43
51
9
63
47
5
48
54
48
53
33
49
50
4
6
47
19
7
29
25
47
48
44
27
61
39
2
17
48
24
40
46
28
23
58
12
26
21
38
51
36
37
50
1
56
59
62
44
3
8
33
57
50
56
48
52
47
35
55
28
31
15
41
20
47
48
47
34
57
13
55
16
47

Артикул

Название

Примечание

Количество

87546434

TRANSMISSION

TRANSMISSION, 8.0C Yoke

1шт.

87546434R

REMAN-TRANSMISSION

Remanufactured TRANSMISSION, POWERSHIFT - 7C (6.375 inches) and 8C (8.5 inches) Yoke Machine - Models STX280/330; STX380/430/480 Std Duty; Steiger 335; Steiger 385/435/485 Std Duty. ASN Z6F105039 ONLY, Start Serial: Z6F105039

1шт.

87546434C

CORE-TRANSMISSION

Return Number

1шт.

1

87350466

TRANSMISSION HOUSING

Rear

1шт.

2

87350479

HOUSING

Transmission Front

1шт.

3

427539A1

RETAINING PLATE

1шт.

4

427560A1

SHIM,0.1mm Thk

1шт.

4

427561A1

SHIM,0.3mm Thk

1шт.

4

427562A1

SHIM,0.7mm Thk

1шт.

5

428162A1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

6

373136A1

COUPLING FLANGE

8C, Input

1шт.

7

428159A1

OIL SEAL

1шт.

8

362564A1

RETAINER

Input

1шт.

9

362565A1

GASKET

Input Retainer

1шт.

10

359242A1

SHIM,0.1mm Thk

1шт.

10

359243A1

SHIM,0.15mm Thk

1шт.

10

359244A1

SHIM,0.3mm Thk

1шт.

10

359251A1

SHIM,0.5mm Thk

1шт.

11

362566A1

ADAPTER

1шт.

12

800-2128

SNAP RING,M28, Int

1шт.

13

362567A1

COUPLING

1шт.

14

428681A1

RING, SNAP

RING SNAP

1шт.

15

87542516

RETAINER

Second Shaft

1шт.

16

362569A1

GASKET

Second Shaft

1шт.

17

87351326

PLATE

Valve

1шт.

18

87351331

GASKET

Valve

1шт.

19

87351392

PLATE

Ditch

1шт.

20

87351393

GASKET

Third Shaft

1шт.

21

362574A1

O-RING

1шт.

23

87362252

BEARING ASSY

Third Shaft

1шт.

24

359252A1

SHIM,0.1mm Thk

1шт.

24

359253A1

SHIM,0.15mm Thk

1шт.

24

362576A1

SHIM,0.3mm Thk

1шт.

24

362577A1

SHIM,0.5mm Thk

1шт.

25

100-2156

SNAP RING,0.562", Int, #56

1шт.

26

87351399

MANIFOLD VALVE

Clutch

1шт.

27

362580A1

GASKET

Clutch Manifold Valve

1шт.

28

427564A1

SHIM,0.1mm Thk

1шт.

28

427565A1

SHIM,0.15mm Thk

1шт.

28

427566A1

SHIM,0.3mm Thk

1шт.

28

427567A1

SHIM,0.5mm Thk

1шт.

28

427568A1

SHIM,0.7mm Thk

1шт.

29

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

30

87351325

OIL SEAL

1шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

32

87351402

PLATE

Valve Retainer

1шт.

33

427515A1

RETAINING PLATE

2шт.

34

427517A1

SHIM,0.1mm Thk

(0.004")

1шт.

34

427519A1

SHIM,0.3mm Thk

(0.012")

1шт.

35

428165A1

O-RING

2шт.

36

373137A1

COUPLING FLANGE

8C, Output

1шт.

37

362601A1

RING

Speed Pick-up

1шт.

38

427514A1

OIL SEAL

1шт.

39

362602A1

RETAINER

Output

1шт.

40

362603A1

GASKET

Output Retaier

1шт.

41

87351323

YOKE

8C, Output

1шт.

42

427558A1

COVER

Power Takeoff

1шт.

43

303493A1

PLUG,Hex Soc, M42 x 2, ORB

Inc. 44

2шт.

44

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

3шт.

45

375456A1

PLUG, DRAIN

M42 orb x 2, Inc. 46

1шт.

46

87350436

CHECK VALVE,4.45mm

1шт.

47

220064A1

PLUG,M14 x 1.5, ORB

Incl. 48

14шт.

48

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

49

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

50

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

24шт.

51

892-11010

LOCK WASHER,M10

6шт.

52

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

53

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

4шт.

54

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

55

514-853

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 56 - 58

1шт.

56

H434163

DUST CAP

1шт.

57

NSS

NOT SOLD SEPARAT

Fitting

1шт.

58

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

59

427559A1

BOLT

2шт.

60

87357396

SOLENOID VALVE

Pulse with Modulation, Inc. 61 - 63

1шт.

61

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

62

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

63

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

Выбрано товаров: 79
