Запчасти Case IH STEIGER 335 (06-42) - POWER SHIFT TRANSMISSION - VALVE AND PUMP MOUNTING (06) - POWER TRAIN

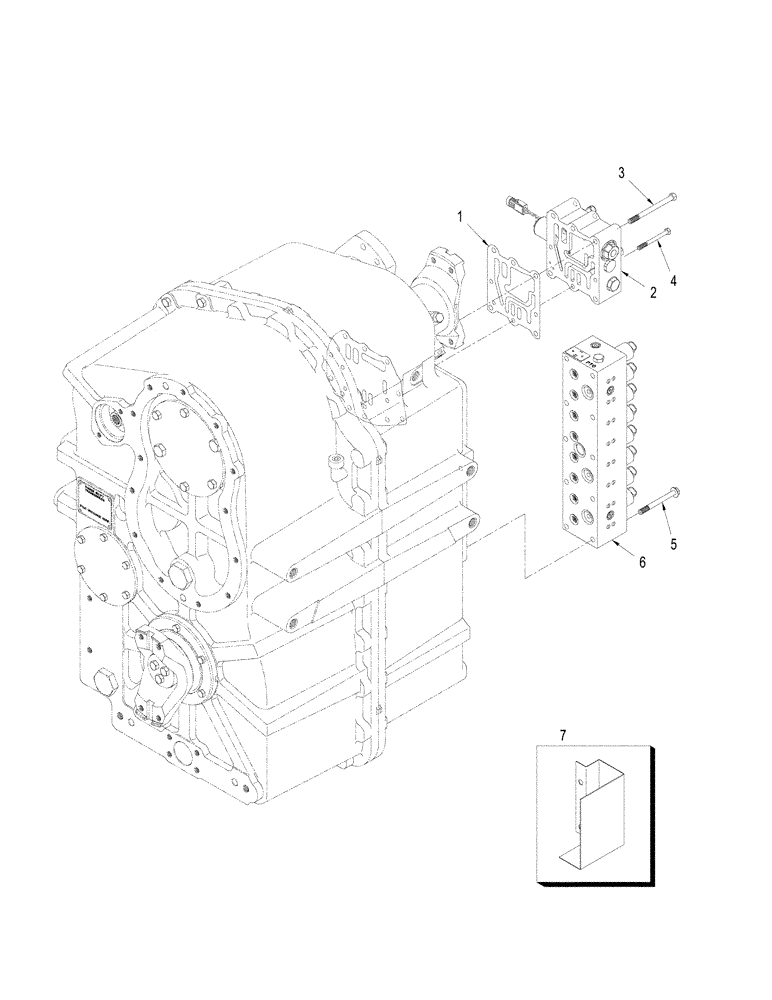

Схема запчастей Case IH STEIGER 335 - (06-42) - POWER SHIFT TRANSMISSION - VALVE AND PUMP MOUNTING (06) - POWER TRAIN
2
3
1
7
6
4
5

Артикул

Название

Примечание

Количество

87546434

TRANSMISSION

TRANSMISSION, 8.0C Yoke

1шт.

87546434R

REMAN-TRANSMISSION

Remanufactured TRANSMISSION, POWERSHIFT - 7C (6.375 inches) and 8C (8.5 inches) Yoke Machine - Models STX280/330; STX380/430/480 Std Duty; Steiger 335; Steiger 385/435/485 Std Duty. ASN Z6F105039 ONLY, Start Serial: Z6F105039

1шт.

87546434C

CORE-TRANSMISSION

Return Number

1шт.

1

87351408

GASKET

Regulator

1шт.

2

87350388

VALVE

Regulator, See Figure: 06-54

1шт.

87350388R

REMAN-HYD VALVE

Steiger 335,

1шт.

87350388C

CORE-VALVE HYD

Return Number

1шт.

3

514-739

BOLT,Hex, M10 x 1.25 x 120mm, Cl 8.8

5шт.

4

614-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

3шт.

5

87362227

BOLT

10шт.

6

87350421

VALVE

Range Selector, See Figure: 06-55

1шт.

7

87335429

COVER

Solenoid

1шт.

Выбрано товаров: 12
