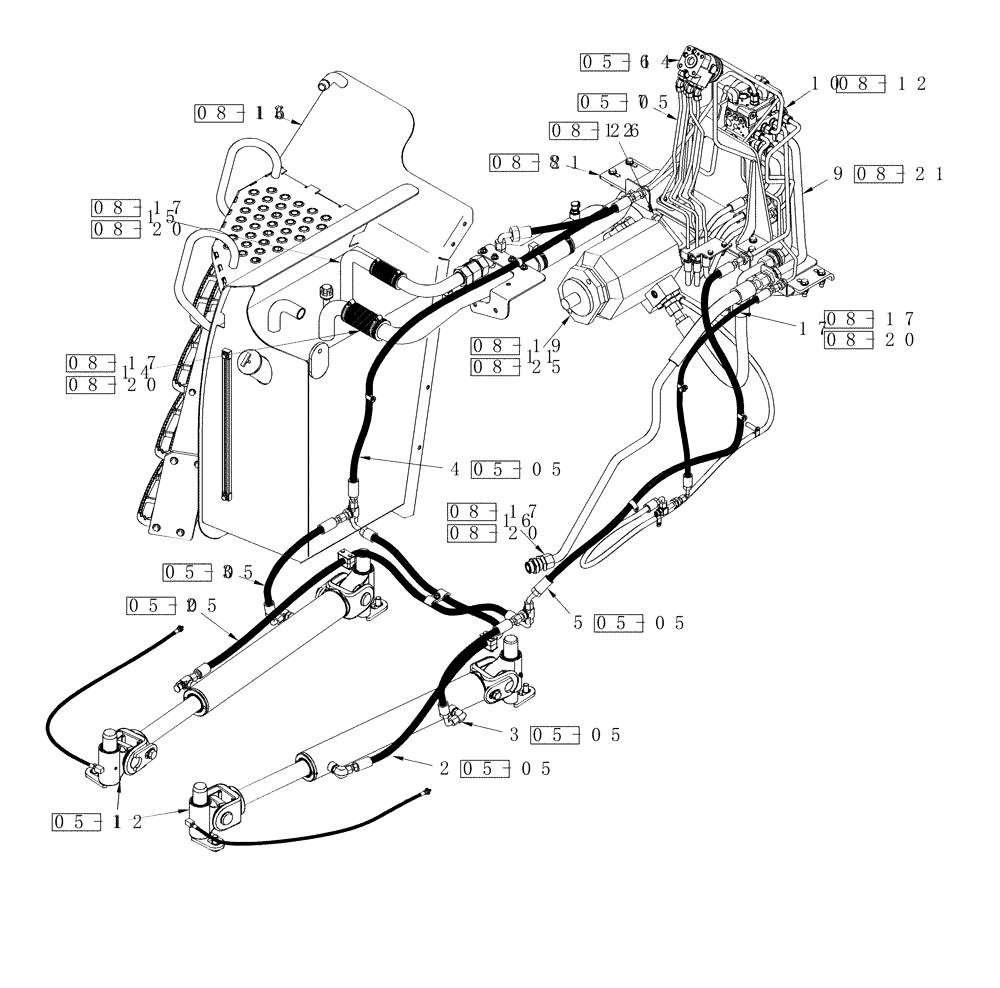

Запчасти Case IH STEIGER 335 (01A-04) - HYDRAULICS - STEERING CIRCUIRTY, WITHOUT ACCUSTEER (00) - PICTORIAL INDEX

1

Cylinder, Steering Articluation, See Figure 05-12

1шт.

2

Hose, Supply, Articulation Cylinder to Priority Valve, See Figure 05-05

1шт.

3

Hose, Return, Cylinder to Priority Valve, See Figure 05-05

1шт.

4

Hose, LH Articulation Cylinder to Priority Valve, See Figure 05-05

1шт.

5

Hose, RH Articulation Cylinder to Priority Valve, See Figure 05-05

1шт.

6

Valve Assy., Steering Orbital, See Figure 05-14

1шт.

7

Tubes, Steering Orbital to EHPS / Priority Valve, See Figure 05-05

1шт.

8

Bracket, Mount, EHPS / Priority Valve, See Figure 08-21

1шт.

9

Tubes, EHPS / Priority Valve Supply & Load Sense, See Figure 08-21

1шт.

10

Valve Assy., EHPS / Priority, See Figure 08-12

1шт.

11

Pump, Piston, High Output Hydraulics, See Figure 08-25

1шт.

11

Pump, Piston, Standard Hydraulics, See Figure 08-19

1шт.

12

Pump, Gear, See Figure 08-26

1шт.

13

Tank, Hydraulic, See Figure 08-16

1шт.

14

Tube, Charge Pump Suction, High Output Hydraulics, See Figure 08-20

1шт.

14

Tube, Charge Pump Suction, Standard Hydraulics, See Figure 08-17

1шт.

15

Tube, Supply, Piston Pump, High Output Hydraulics, See Figure 08-20

1шт.

15

Tube, Supply, Piston Pump, Standard Hydraulics, See Figure 08-17

1шт.

16

Hose, EF Supply, High Output Hydraulics, See Figure 08-20

1шт.

16

Hose, EF Supply, Standard Hydraulics, See Figure 08-17

1шт.

17

Hose, Compensator to Shuttle Valve, High Output Hydraulics, See Figure 08-20

1шт.

17

Hose, Compensator to Shuttle Valv, Standard Hydraulics, See Figure 08-17

1шт.
