Запчасти Case IH STEIGER 335 (06-31) - MANUAL SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND SHIFTER FORKS (06) - POWER TRAIN

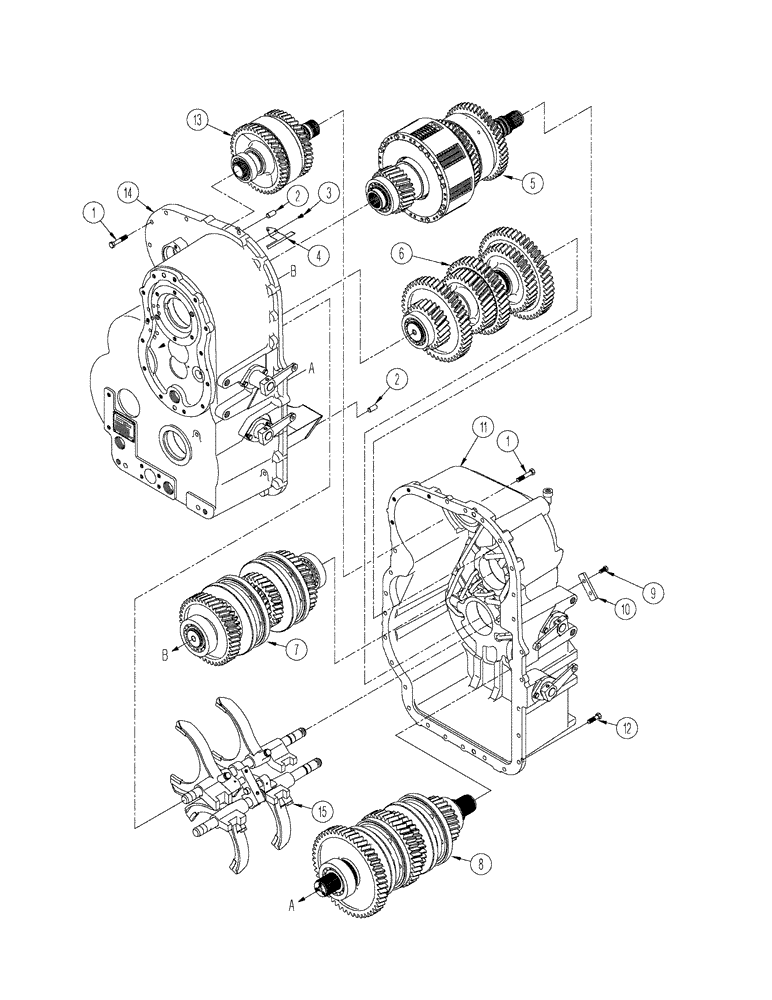

Схема запчастей Case IH STEIGER 335 - (06-31) - MANUAL SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND SHIFTER FORKS (06) - POWER TRAIN
1
2
12
5
7
9
15
4
8
6
2
11
13
3
1
14
10

Артикул

Название

Примечание

Количество

1

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

13шт.

2

427530A1

DOWEL,14mm OD x 31mm L

2шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

427577A1

TROUGH

Reverse Idler

1шт.

5

428120A1

SHAFT ASSY.

Input, See Figure: 06-33 & 06-34

1шт.

6

427681A1

SHAFT ASSY.

Fourth, See Figure: 06-37

1шт.

7

427647A1

SHAFT ASSY.

Third, See Figure: 06-36

1шт.

8

427690A1

SHAFT ASSY.

Fifth, See Figure: 06-38

1шт.

9

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

428138A1

PLATE

1шт.

11

427588A1

HOUSING

Front

1шт.

12

514-830

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

16шт.

13

428121A1

SHAFT ASSY.

Second, See Figure: 06-35

1шт.

14

427538A1

HOUSING

Rear

1шт.

15

428130A1

SHIFTER FORK

1-R Gears, See Figure: 06-32

1шт.

15

428131A1

SHIFTER FORK

2-3 Gears, See Figure: 06-32

1шт.

15

428133A1

SHIFTER FORK

C-D Range, See Figure: 06-32

1шт.

15

428132A1

SHIFTER FORK

A-B Range, See Figure: 06-32

1шт.

Выбрано товаров: 18
