(06-21) - POWER TAKEOFF - INPUT SHAFT ASSEMBLY

Запчасти Case IH STEIGER 335 (06-21) - POWER TAKEOFF - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

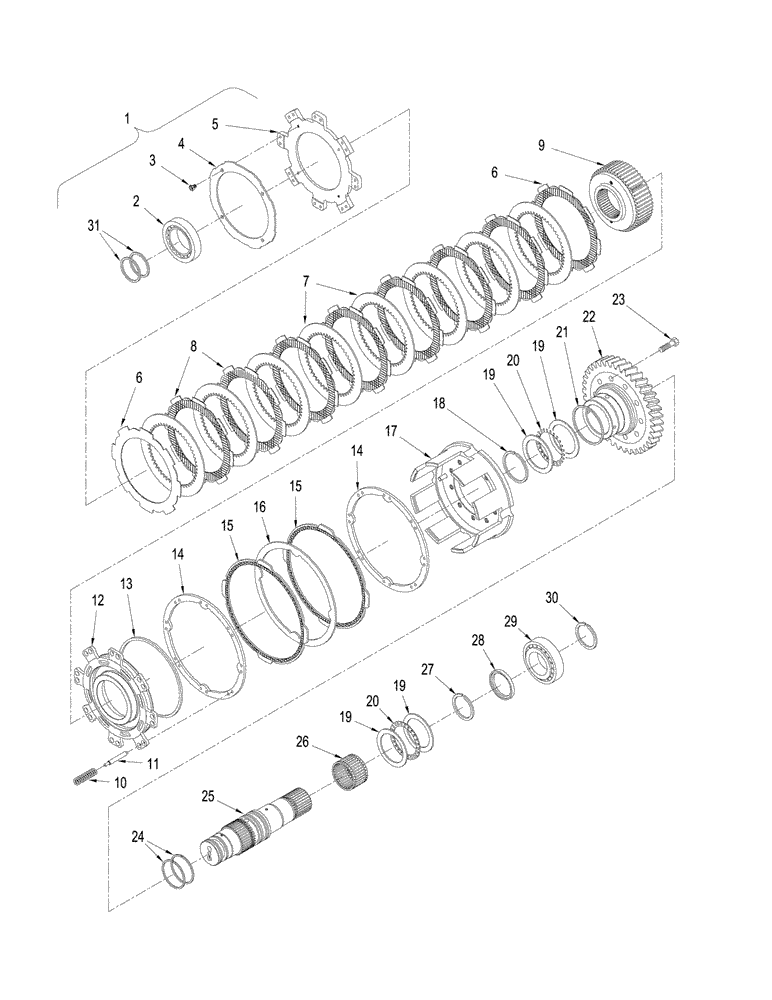

Схема запчастей Case IH STEIGER 335 - (06-21) - POWER TAKEOFF - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN
19
10
30
27
29
23
22
12
28
15
4
14
15
3
8
2
9
20
6
20
31
5
24
14
17
6
21
11
19
1
7
16
26
18
19
25
19
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601933

PTO SHAFT

Assy., Input

1шт.

2

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

1шт.

3

375523A1

BOLT

4шт.

4

375525A1

PLATE

1шт.

5

375527A1

PLATE

1шт.

6

375528A1

CLUTCH DISC

CLUTCH DISK Faced

2шт.

7

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm

8шт.

8

375529A1

CLUTCH DISC

CLUTCH DISK Faced

7шт.

9

375530A1

HUB

1шт.

10

375531A1

COIL SPRING

Brake Return

16шт.

11

375532A1

PIN

16шт.

12

375533A1

PISTON

1шт.

13

352834A1

RING

1шт.

14

375534A1

BRAKE PLATE

Steel

2шт.

15

375535A1

BRAKE PLATE

Faced

2шт.

16

375536A1

BRAKE PLATE

Steel

1шт.

17

375538A1

DRUM

1шт.

18

S2240S00F

RING, SNAP

RING SNAP

1шт.

19

S2220S00F

THRUST WASHER

2.4 mm

4шт.

20

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

21

S5510S00F

RING

1шт.

22

375540A1

PINION

Drive

1шт.

23

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

24

375541A1

SEALING RING

2шт.

25

87601935

PTO SHAFT

Input

1шт.

26

375543A1

NEEDLE BEARING

1шт.

27

375544A1

SNAP RING

1шт.

28

375545A1

WASHER

1шт.

29

375546A1

TAPERED BEARING

1шт.

29

186621A1

ROLLER BEARING

1шт.

30

375547A1

SNAP RING

2.8 mm (0.110 in.)

1шт.

30

375548A1

SNAP RING

2.9 mm (0.114 in.)

1шт.

30

375544A1

SNAP RING

3.0 mm (0.118 in.)

1шт.

31

S3070S00F

RING

Seal

2шт.
