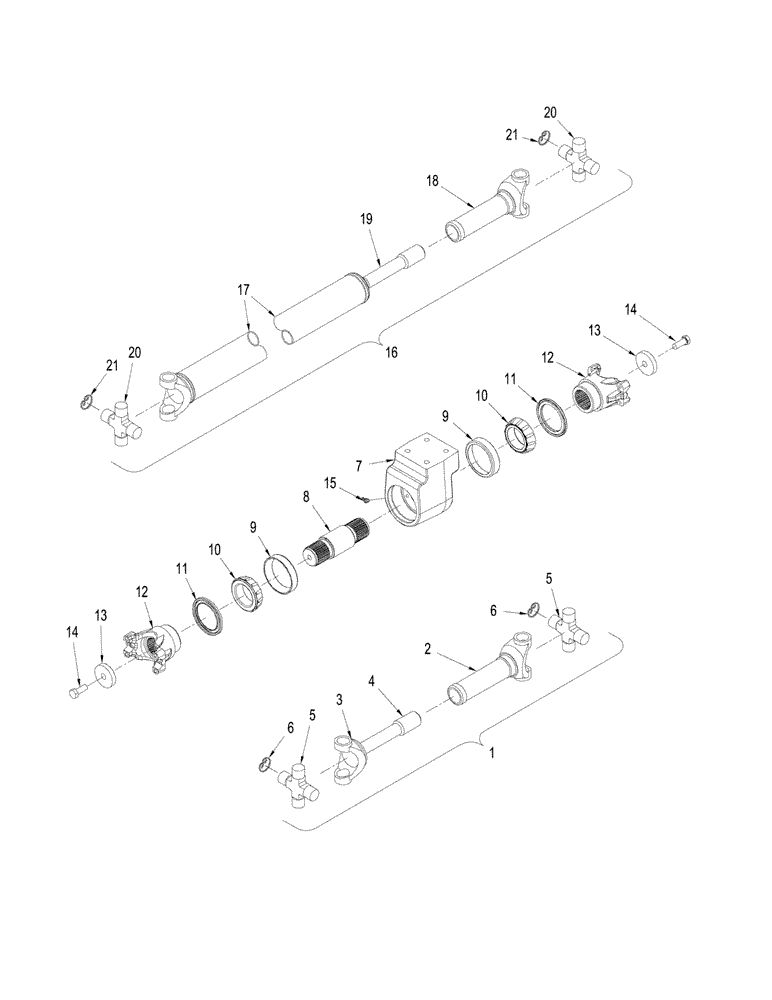

Запчасти Case IH STEIGER 335 (06-17) - POWER TAKEOFF - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

1

404601A1

DRIVE SHAFT

Articulation, Inc. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Slip Yoke

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Flanged

1шт.

4

33-1001T1

SEAL RETAINER

1шт.

5

33-1004T2

BEARING ASSY

Inc. 6

2шт.

6

S92378

RING, SNAP

RING SNAP

4шт.

7

399447A1

HOUSING, BEARING

1шт.

8

399446A1

SHAFT

Drive, PTO Hanger Bearing

1шт.

9

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

2шт.

10

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

11

435537A1

SEAL

2шт.

12

398554A1

YOKE

UNIVERSAL JOINT YOKE

2шт.

13

19-5864

WASHER

2шт.

14

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

16

404602A1

DRIVE SHAFT

Rear, Inc. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Rear

1шт.

18

NSS

NOT SOLD SEPARAT

Shaft, Slip Yoke

1шт.

19

33-1001T1

SEAL RETAINER

1шт.

20

33-1004T2

BEARING ASSY

Inc. 2

2шт.

21

S92378

RING, SNAP

RING SNAP

4шт.
