Запчасти Case IH STEIGER 335 (06-15) - POWER TAKEOFF LUBRICATION (06) - POWER TRAIN

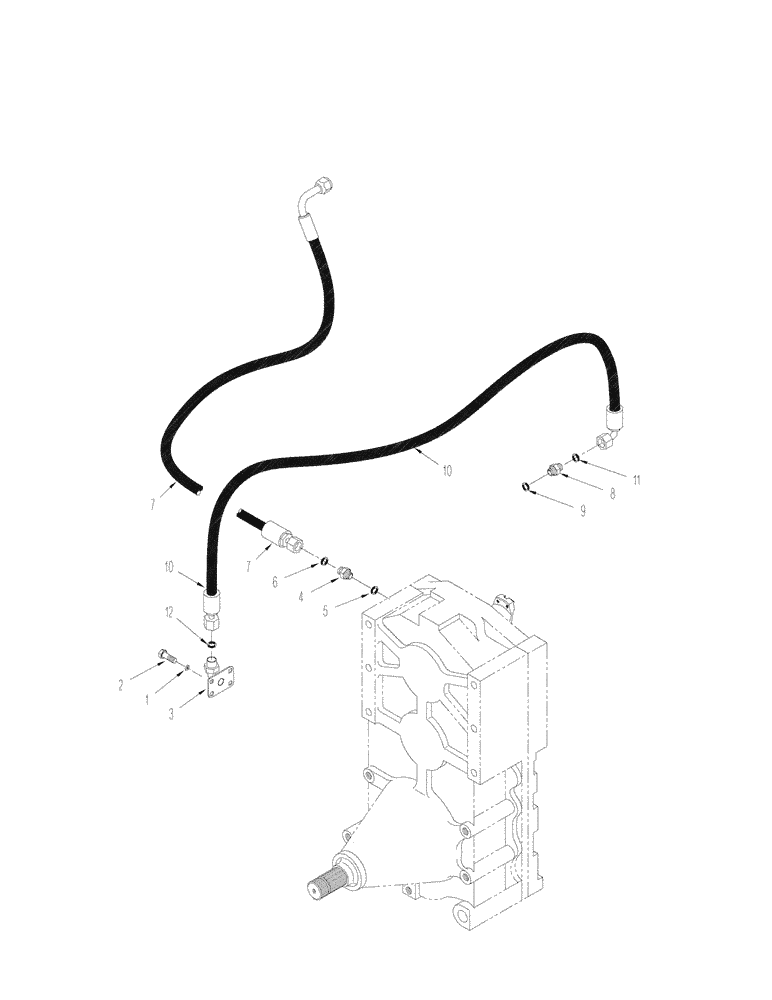

Схема запчастей Case IH STEIGER 335 - (06-15) - POWER TAKEOFF LUBRICATION (06) - POWER TRAIN
7
2
3
10
8
7
10
9
5
11
6
4
12
1

Артикул

Название

Примечание

Количество

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

86992408

FITTING

Flange

1шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 14 and 15

2шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

86992554

HOSE ASSY.

2781 mm (109")

1шт.

8

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 9 and 11

1шт.

9

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

86992553

HOSE ASSY.

1217 mm (48"), Rear, Serial Range: Axle-PTO

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
