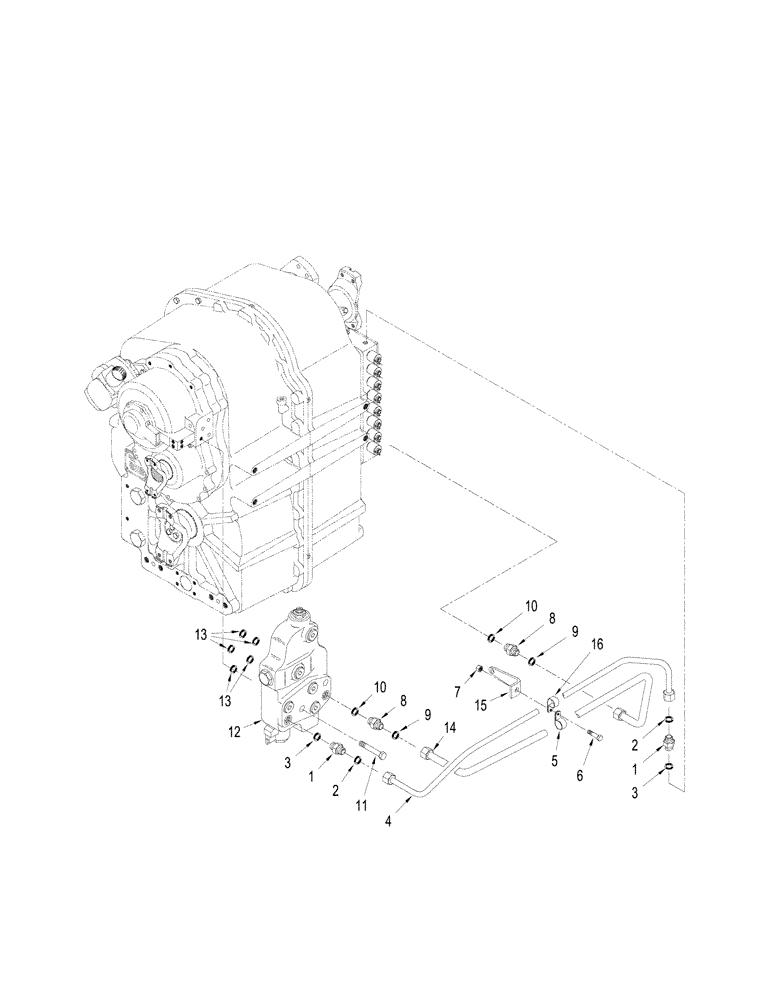

Запчасти Case IH STEIGER 335 (06-13) - POWER TAKEOFF - CLUTCH LUBRICATION, WITH POWER SHIFT TRANSMISSION (06) - POWER TRAIN

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 2, 3

2шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

87436852

TUBE,9.5 mm OD

1шт.

5

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 9, 10

2шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

12

413944A1

VALVE

Power Takeoff, See Figure: 06-14

1шт.

13

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

5шт.

14

414550A1

TUBE

1шт.

15

414553A1

BRACKET

Support

1шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.
