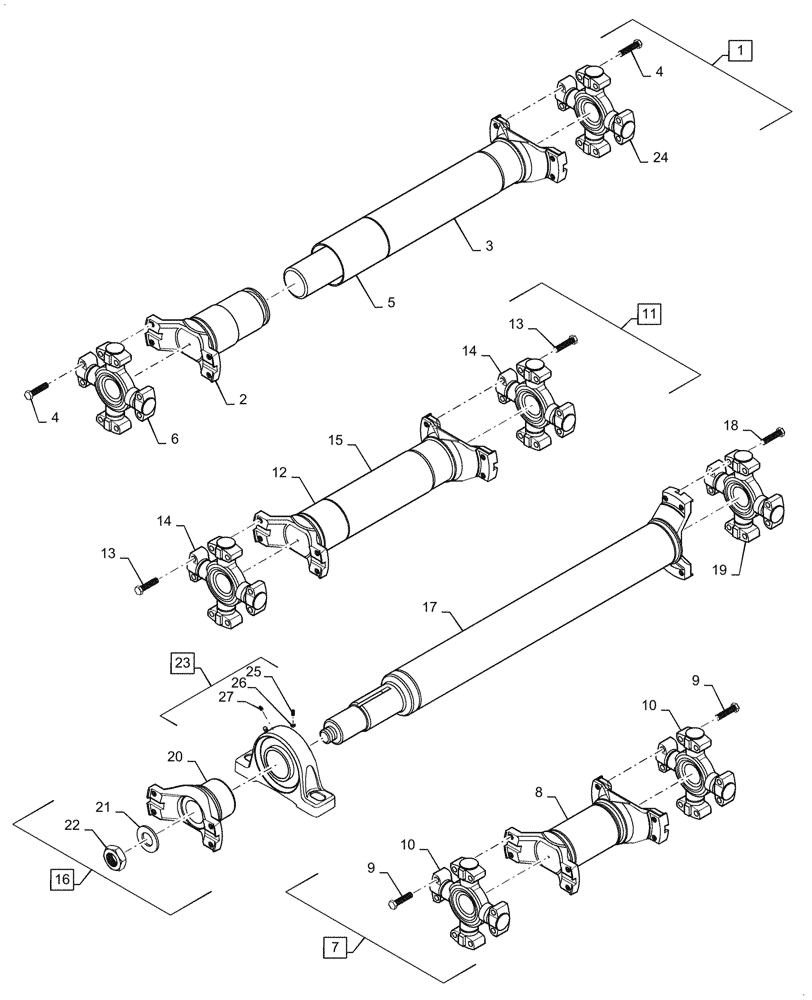

Запчасти Case IH STEIGER 335 (06-11) - DRIVE SHAFT ASSEMBLY, WITH ACCUSTEER (06) - POWER TRAIN

1

402179A1

DRIVE SHAFT

Input, Inc. 1 - 6, 24

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Slip Yoke

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Flanged

1шт.

4

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

8шт.

5

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Input Shaft

1шт.

6

431621A1

BEARING ASSY

Spider Bearing, 8C

1шт.

7

402181A1

DRIVE SHAFT

Front Axle, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft, Slip Yoke

1шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

10

431621A1

BEARING ASSY

8C

1шт.

11

402182A1

DRIVE SHAFT

Articulation, Inc. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft, Slip Yoke

1шт.

13

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

14

431621A1

BEARING ASSY

8C

2шт.

15

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Articulation Shaft

1шт.

16

402183A1

DRIVE SHAFT

Rear Axle, Inc. 14 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Rear Axle

1шт.

18

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

19

431621A1

BEARING ASSY

8C

1шт.

20

404451A1

YOKE

UNIVERSAL JOINT YOKE 8C

1шт.

21

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

22

131-487

LOCK NUT,1 1/4"-18

1шт.

23

87385925

BEARING CARRIER,68.26mm ID

Incl 25 - 27

1шт.

24

309093A1

UNIVERSAL JOINT

8.5C

1шт.

25

84-63812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

1шт.

26

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
