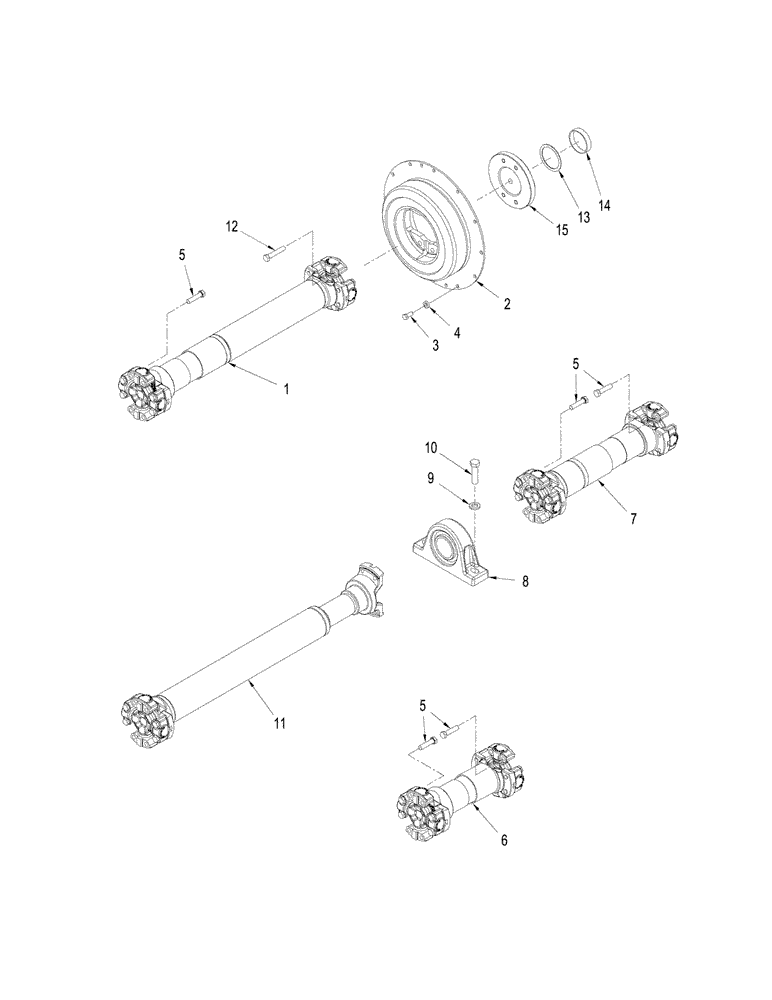

Запчасти Case IH STEIGER 335 (06-09) - DRIVE SHAFTS AND MOUNTING, WITH ACCUSTEER TRACTOR (06) - POWER TRAIN

1

402179A1

DRIVE SHAFT

Input, See Figure: 06-11

1шт.

2

357930A1

DAMPER

Vibration

1шт.

3

426-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

12шт.

4

496-81023

WASHER

12шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

6

402181A1

DRIVE SHAFT

Front Axle, See Figure: 06-11

1шт.

7

402182A1

DRIVE SHAFT

Articulation, See Figure: 06-11

1шт.

8

87385925

BEARING CARRIER,68.26mm ID

Pillow Block, See Figure: 06-11

1шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

10

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

11

402183A1

DRIVE SHAFT

Rear Axle, See Figure: 06-11

1шт.

12

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

13

362360A1

THRUST BEARING,66.75mm ID x 82.55mm OD x 1.98mm Thk

Thrust

1шт.

14

362359A1

BUSHING,66.88mm ID x 72.07mm OD x 15mm L

Pivot

1шт.

15

358175A2

ADAPTER

Thrust

1шт.
