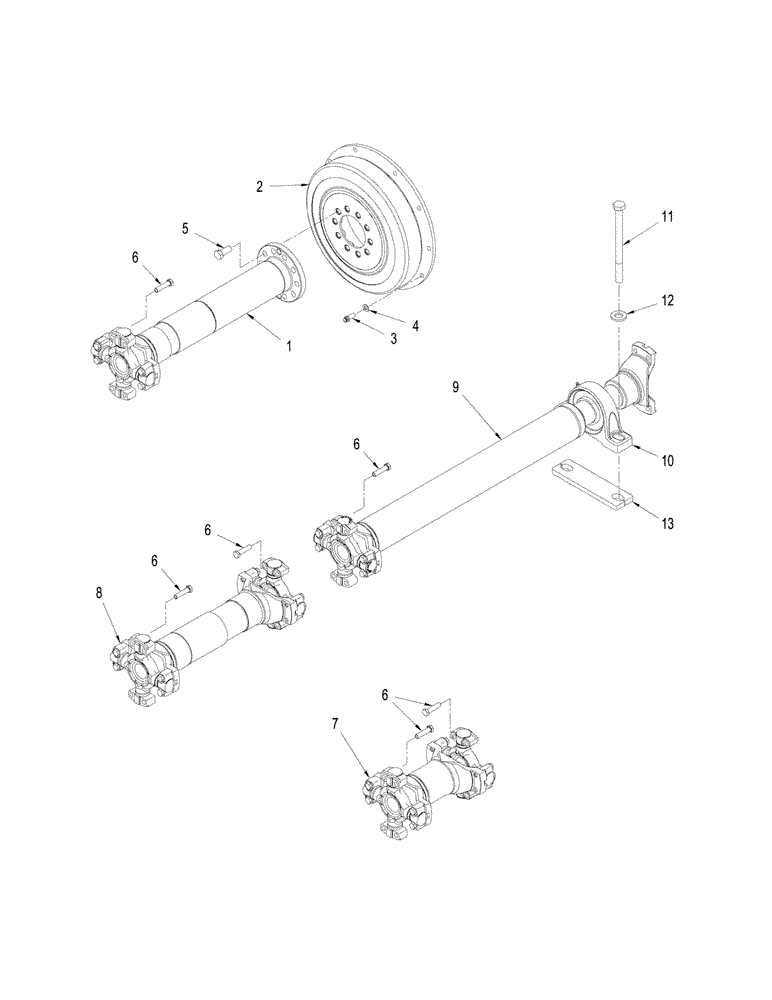

Запчасти Case IH STEIGER 335 (06-08) - DRIVE SHAFTS AND MOUNTING, WITHOUT ACCUSTEER (06) - POWER TRAIN

1

402178A1

DRIVE SHAFT

Input, See Figure: 06-10

1шт.

With Manual Shift Transmission

1шт.

1

402177A1

DRIVE SHAFT

Input, See Figure: 06-10

1шт.

With Power Shift Transmission

1шт.

2

357931A1

DAMPER

Vibration

1шт.

3

426-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

12шт.

4

496-81023

WASHER

12шт.

5

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

7

402180A1

DRIVE SHAFT

Front Axle, See Figure: 06-10

1шт.

8

402182A1

DRIVE SHAFT

Articulation, See Figure: 06-10

1шт.

9

402183A1

DRIVE SHAFT

Rear Axle, See Figure: 06-10

1шт.

10

87385925

BEARING CARRIER,68.26mm ID

Pillow Block, See Figure: 06-10

1шт.

11

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

12

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

13

410560A1

SPACER

Pillow Bearing

1шт.
