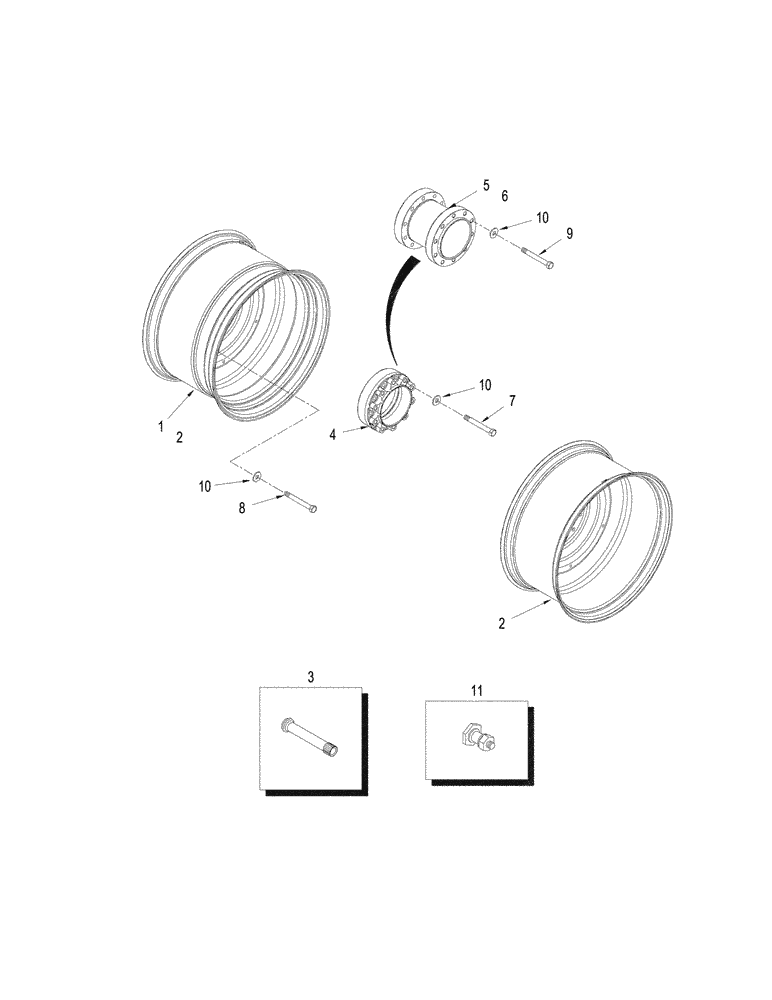

Запчасти Case IH STEIGER 335 (06-06) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN

1

193273A1

WHEEL

27 x 32, Single

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

305792A1

RIM

MW23A x 42, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

193300A2

RIM

MW23A x 38, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

396113A1

RIM

WHEEL W16A x 46, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

222665A1

WHEEL

W18A x 38, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

193857A1

WHEEL

W18A x 42, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

276687A1

WHEEL

MW20A x 42, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

311352A1

WHEEL

28 x 42, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

403037A1

RIM

MW25 x 38, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

196254A1

WHEEL

W13 x 46, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

221362A1

WHEEL

WH16A x 42, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

326630A1

WHEEL

W12 x 50, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

87443702

WHEEL

46 x FDW20A, Single or Dual

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

87756410

WHEEL ASSY

42 x FDW28B

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

2

84273344

WHEEL

32 x DH27H

1шт.

Reference Your Tire Manufacture's Tire Guide for Approved Tires That Fit This Rim.

1шт.

3

A20058

VALVE STEM

1шт.

4

405822A1

SPACER

127 mm (5")

1шт.

5

405823A1

SPACER

254 mm (10")

1шт.

6

405824A1

SPACER

330 mm (13")

1шт.

7

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

10шт.

8

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.

9

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

10шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

11

87352762

PLUG

Rim Hole, 5/8"

1шт.
