Запчасти Case IH STEIGER 335 (06-01) - TRANSMISSION SHIFTER AND THROTTLE CONTROL (06) - POWER TRAIN

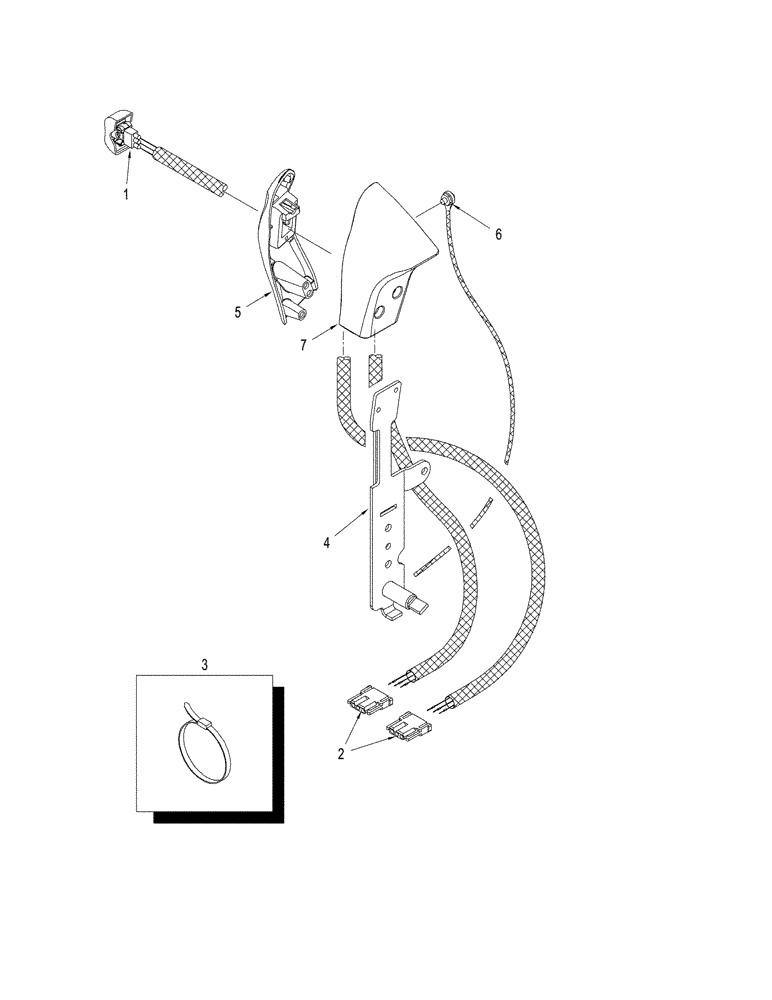

Схема запчастей Case IH STEIGER 335 - (06-01) - TRANSMISSION SHIFTER AND THROTTLE CONTROL (06) - POWER TRAIN
1
4
3
6
5
7
2

Артикул

Название

Примечание

Количество

1

258010A2

SWITCH

Up / Down Transmission Gear Shifter

1шт.

With Power Shift Transmission

1шт.

1

428314A1

SWITCH

Hi / Low Transmission Shifter

1шт.

With Manual Shift Transmission

1шт.

2

235676A1

CONNECTOR, ELEC

CONNECTOR Electrical, Hand Throttle

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

4

367607A1

BRACKET

Throttle / Transmission Shifter

1шт.

5

87622401

GRIP

Switch Face

1шт.

6

388706A1

ASSEMBLY

Select-Shift

1шт.

With Power Shift Transmission

1шт.

7

293388A2

GRIP

Throttle, Vinyl

1шт.

With Manual Shift Transmission

1шт.

7

388705A1

GRIP

Throttle, Vinyl

1шт.

With Power Shift Transmission

1шт.

7

388864A1

GRIP

Throttle, Leather

1шт.

With Power Shift Transmission

1шт.

Выбрано товаров: 16
