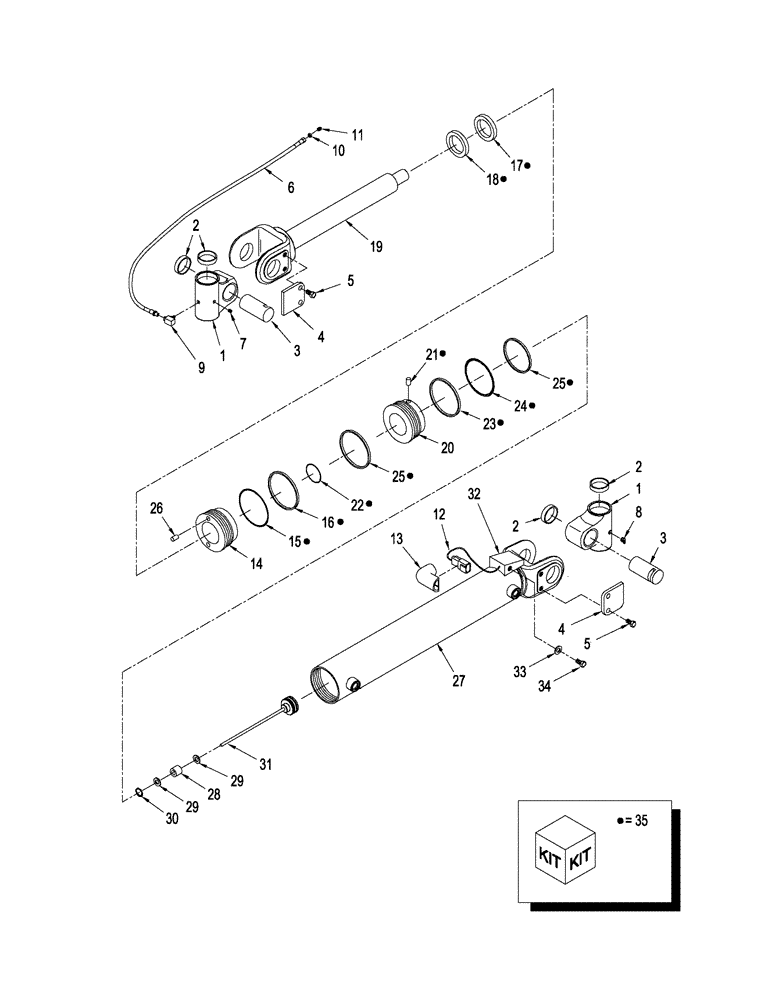

Запчасти Case IH STEIGER 335 (05-13) - CYLINDER ASSY - ARTICULATION, WITH SENSOR (05) - STEERING

1

410700A1

KNUCKLE JOINT

2шт.

2

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

8шт.

3

87447988

PIN

2шт.

4

87447987

PLATE

Retainer

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

937781R92

HOSE,3.02mm ID x 686mm L

Lubrication

1шт.

7

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

219-20

LUBE NIPPLE,1/4" - 28

1шт.

12

276426A1

ELEC CONNECTOR,Male, 3 Pin

Socket, 3-Pin

1шт.

87552144

STEERING CYLINDER

Incl 14 - 34

1шт.

13

87552166

SEAL

Boot

1шт.

14

87397782

HEAD

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wiper

1шт.

19

87397783

SHAFT

Piston

1шт.

20

87397773

PISTON

1шт.

21

NSS

NOT SOLD SEPARAT

Cup, Screw, .380"

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

26

NSS

NOT SOLD SEPARAT

Screw, 1/4"-NC x 3/8"

1шт.

27

87397784

CASE

Barrel

1шт.

28

87397843

MAGNET

1шт.

29

87397844

SPACER

2шт.

30

87532453

SNAP RING

1шт.

31

87552141

SENSOR

Rod, Rear Articulation

1шт.

32

87397788

GUARD

Sensor Wire

1шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

34

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

35

87397777

SEAL KIT

Use With Cylinder Marked 87552144, Incl 13, 15 - 18, 22 - 25

1шт.

35

87377669

SEAL KIT

Use With Cylinder Marked 87597386

1шт.
