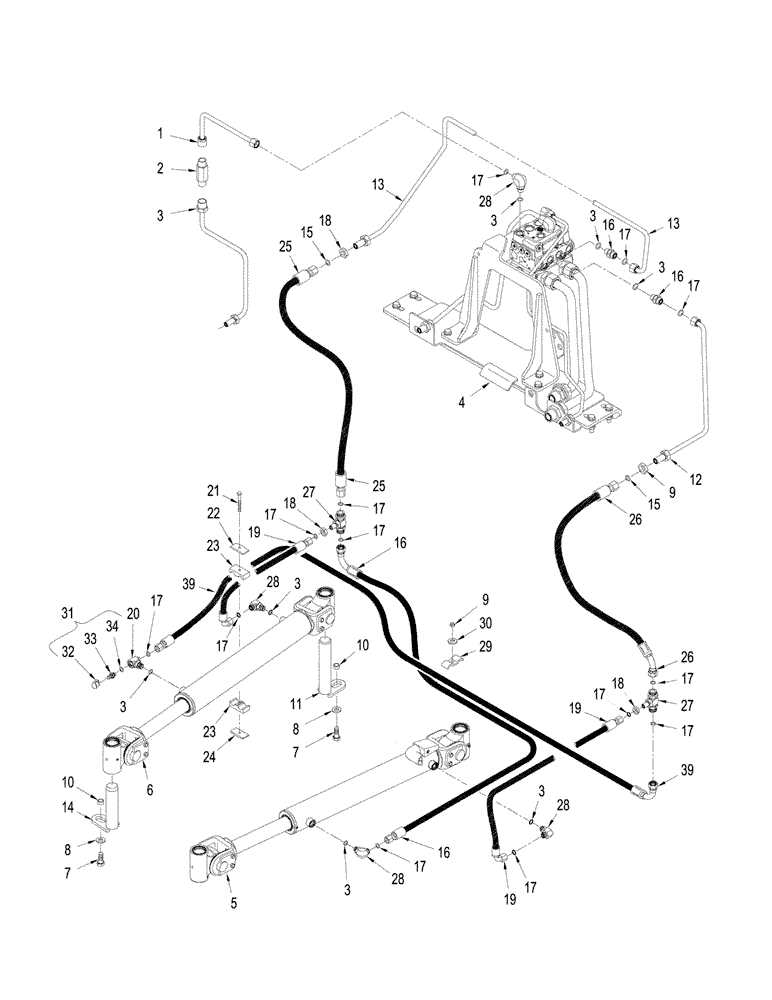

Запчасти Case IH STEIGER 335 (05-11) - ACCUGUIDE - HYDRAULIC, STEERING, WITHOUT ACCUSTEER (05) - STEERING

1

87349012

HYD TUBE

Flow Switch to Port 'PS'

1шт.

2

84270357

PRESSURE SWITCH

In-Line Flow

1шт.

2

84270357R

REMAN-PRESSURE SWITC

Remanufactured Pressure Switch

1шт.

2

84270357C

CORE-FRT AXLE w/DL

CORE-PRESSURE SWITCH Return Number, PRESSURE SWITCH

1шт.

3

87349022

HYD TUBE

Pressure to Flow Switch

1шт.

4

87585898

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-12

1шт.

5

87552144

STEERING CYLINDER

Articluation, with Sensor, See Figure: 05-13

1шт.

6

87447305

HYDRAULIC CYLINDER

Articulation, without Sensor, See Figure: 05-12

1шт.

6

87304291R

REMAN-HYD CYLINDER

STEIGER 335 4WD TRACTOR, Articulation, without Sensor (8/07-), Reman for New PN 87447305

1шт.

6

87304291C

CORE-HYD CYLINDER

Return Number

1шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

9

829-1412

NUT,M12, Cl 10.9

1шт.

10

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

11

360493A1

PIN

2шт.

12

87450242

TUBE,12.7 mm OD

Port 'CR'

1шт.

13

87450949

TUBE,9.4 mm ID x 12.7 mm OD

Port 'CL'

1шт.

14

256295A1

PIN

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

16

352114A1

HOSE

Supply, 1460 mm (57-1/2")

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

701-903

NUT,13/16" - 16

4шт.

19

367244A1

HOSE,12.7mm ID x 550mm L

Return, Articulation Cylinder to Priority Valve, 550 mm (22")

2шт.

20

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

Inc. 3 & 17

1шт.

21

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

22

279519A1

LARGE PLATE

PLATE, LARGE Support, Double Hose Clamp

2шт.

23

399102A1

CLAMP

Double Hose

4шт.

24

399431A1

PLATE

Support, Double Hose Clamp

2шт.

25

393606A1

HOSE

Priority Valve to Articulation Cylinder, 1752 mm (69")

1шт.

26

393607A1

HOSE

Priority Valve to Articulation Cylinder, 1933 mm (76")

1шт.

27

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 17

2шт.

28

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 17

4шт.

29

242563A1

CLAMP

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

31

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 33 - 34

1шт.

32

H434163

DUST CAP

1шт.

33

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 35

1шт.

34

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
