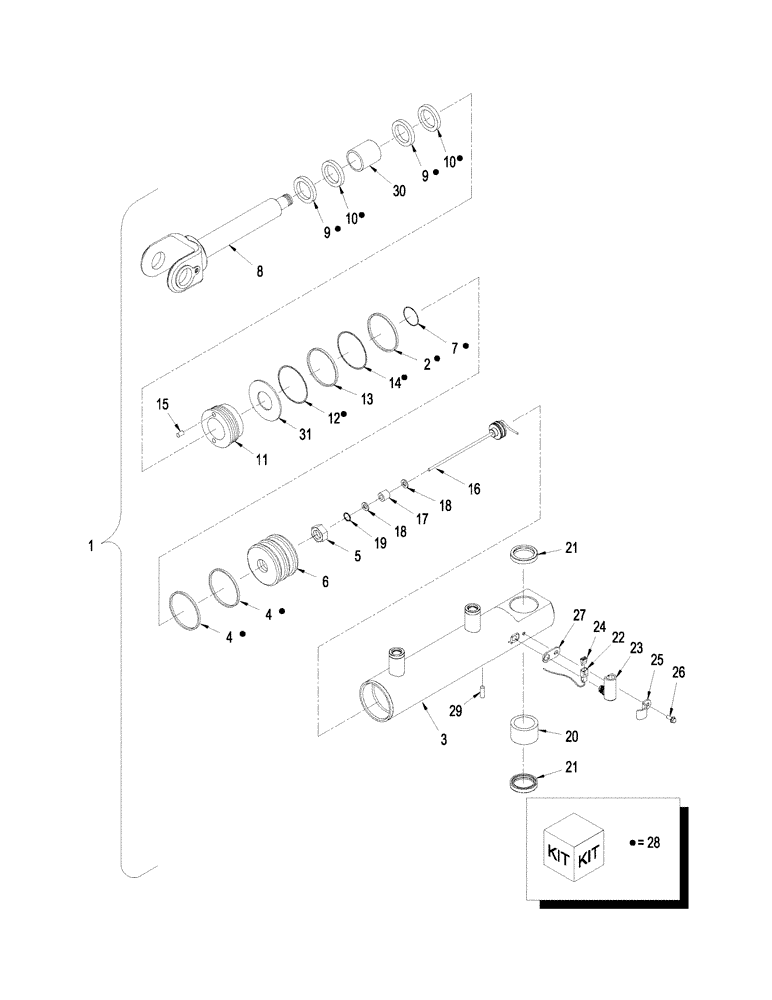

Запчасти Case IH STEIGER 335 (05-09) - CYLINDER ASSY - STEERING, WITH SENSOR (05) - STEERING

1

87597407

STEERING CYLINDER

with Sensor, Inc. 2 - 21 & 29 - 31

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

3

87378703

TUBE

Steering Cylinder

1шт.

4

87397844

SPACER

1шт.

5

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

6

87378699

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87378701

ROD

Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Seal

2шт.

10

NSS

NOT SOLD SEPARAT

Retainer

2шт.

11

87378702

CYLINDER END CAP

End Cap

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Screw, 1/4"-20 NC x 3/8"

1шт.

16

87552134

SENSOR

Rod, Front Steering

1шт.

17

87397843

MAGNET

1шт.

18

87378695

SPACER

Steering Cylinder

2шт.

19

87378694

RING

Retaining

1шт.

20

87378696

BUSHING

1шт.

21

87378705

WIPER SEAL

Wiper

2шт.

22

276426A1

ELEC CONNECTOR,Male, 3 Pin

Socket, 4 Pin

1шт.

23

87552166

SEAL

Boot

1шт.

24

280448A1

STOP LOCK

Connector Wedge

1шт.

25

87687352

BRACKET

Restraint, Cylinder Boot

1шт.

26

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

27

87687456

BRACKET

Restraint, Boot

1шт.

Used with ACCUSTEER applications

1шт.

28

87378693

KIT

Inc. 2, 4, 7, 9, 10, 12 - 14 & 23

1шт.

29

877-20820

SCREW,less Hex Socket, M8 x 20mm, Alloy Steel

Set

1шт.

30

87378697

BUSHING

Wear

1шт.

31

87378704

WASHER

End Cap

1шт.
