Запчасти Case IH STEIGER 335 (04-38[01]) - ACCUGUIDE - AUTOSENSE MOUNTING & RELATED PARTS, ASN Z8F109858 (04) - ELECTRICAL SYSTEMS

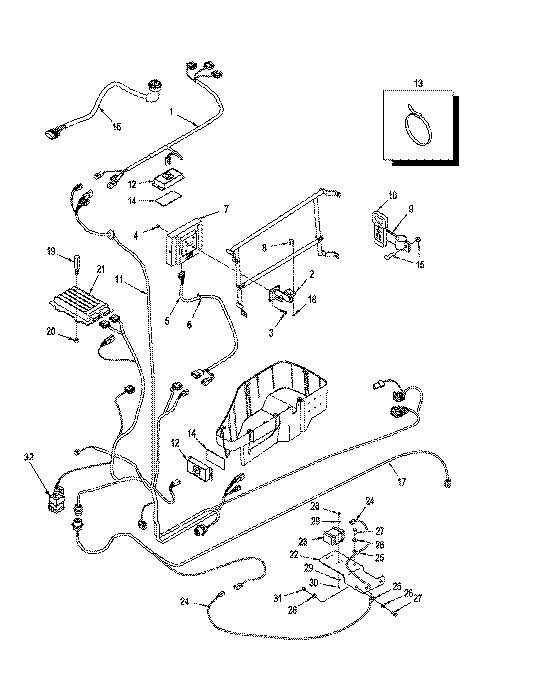

Схема запчастей Case IH STEIGER 335 - (04-38[01]) - ACCUGUIDE - AUTOSENSE MOUNTING & RELATED PARTS, ASN Z8F109858 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

87580504

HARNESS

Cab Roof

1шт.

2

87386396

MOUNT

AFS 600 Pro, Touch Screen Color Display

1шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

5

87566059

HARNESS

AFS 600 Pro, Touch Screen Color Display

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

7

NSS

NOT SOLD SEPARAT

Monitor, AFS 600 Pro, Touch Screen Display

1шт.

Order from ACCUGUIDE Price Book.

1шт.

8

19-6258

U-BOLT

2шт.

9

87428367

KIT

Adj. Arm Mount GPS70

1шт.

10

87428366

MODULE

RDL Radio

1шт.

11

87723914

HARNESS

Autoguidance / ISO Cab / Autosense

1шт.

12

284638A2

ELEC CONNECTOR,4 Pin

Active Teminator

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

15шт.

14

406450A1

FASTENER

Velcro

2шт.

15

87428369

SET

Bolt

1шт.

16

87428396

CABLE ASSY.

CBL, Serial Range: 252-SiteNet

1шт.

17

87723916

HARNESS

Autosense Chasis, Cab Harness to Steering Manifold & Autosense Manifold

1шт.

18

425-104

NUT,1/4"-20, Cl 5

Optical Encoder

4шт.

19

440570A1

STUD

4шт.

20

87423195

SPACER

4шт.

21

87346979

CONTROL

Module, NAV ll

1шт.

87346979C

CORE-ELECTRONIC CONT

Return Number, CONTROL - for N.A. Only

1шт.

22

84196100

BRACKET

Mounting, Autosense

1шт.

23

87743199

MODULE

Autosense, Trimble

1шт.

24

87743200

HARNESS

Jumper, Autosense, 610 mm (24")

1шт.

25

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

28

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

29

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

30

832-46404

NUT,M4 x .7, Cl 8

6шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

32

293256A2

RELAY,12V

5 Pin, 12V, 40 Amp

1шт.

Выбрано товаров: 34
