Запчасти Case IH STEIGER 330 (04-35) - ACCUGUIDE - AFS 200 PRO MOUNTING & RELATED PARTS (04) - ELECTRICAL SYSTEMS

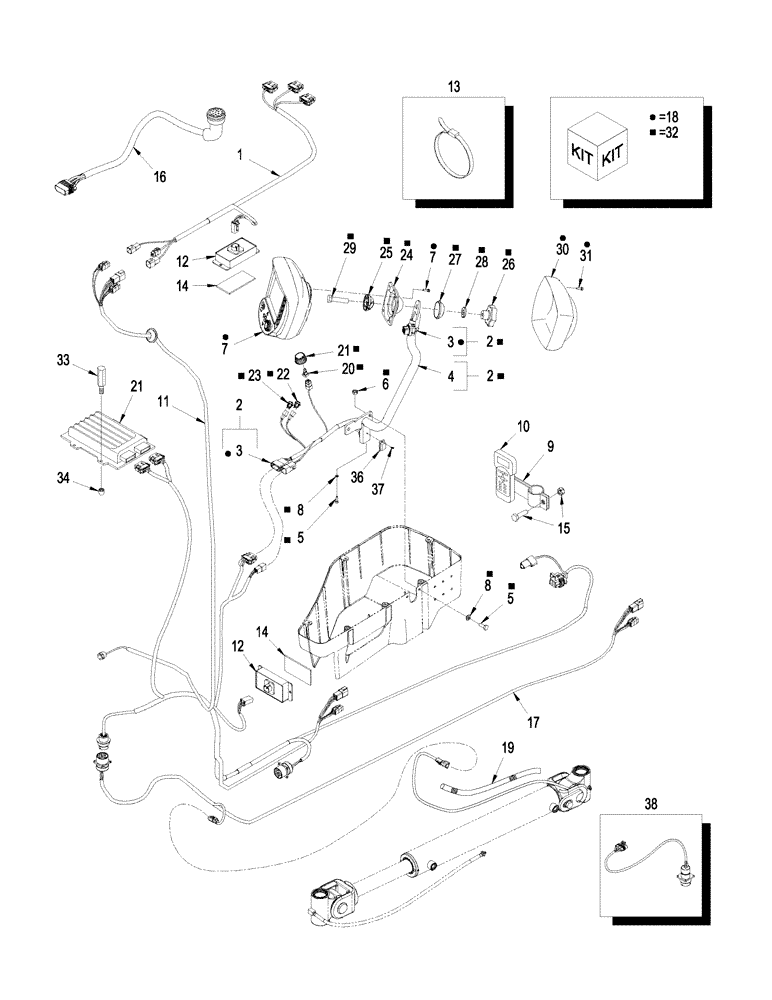

Схема запчастей Case IH STEIGER 330 - (04-35) - ACCUGUIDE - AFS 200 PRO MOUNTING & RELATED PARTS (04) - ELECTRICAL SYSTEMS
32
32
32
18
18
12
32
34
32
32
2
19
24
5
38
32
32
32
31
8
3
32
32
30
21
7
17
32
28
27
32
32
26
36
6
25
23
33
14
32
22
16
12
32
9
4
32
32
3
18
10
13
20
15
2
18
18
32
5
1
8
21
11
29
18
14
2
37
7
18

Артикул

Название

Примечание

Количество

1

87580504

HARNESS

Cab Roof

1шт.

2

87566063

HARNESS

AFS, Inc. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Harness, Virtual Terminal

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Mounting

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

7

NSS

NOT SOLD SEPARAT

Monitor, AFS 200 Pro, Small Wide Color Virtual Terminal

1шт.

Order from ACCUGUIDE Price Book.

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

87428367

KIT

Adj. Arm Mount GPS70

1шт.

10

87428366

MODULE

RDL Radio

1шт.

11

87584843

HARNESS

Cab

1шт.

12

284638A2

ELEC CONNECTOR,4 Pin

Active Teminator

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

15шт.

14

406450A1

FASTENER

Velcro

2шт.

15

87428369

SET

Bolt

1шт.

16

87428396

CABLE ASSY.

CBL, Serial Range: 252-SiteNet

1шт.

17

87331556

HARNESS

Chasis

1шт.

18

719631026

KIT

Wide Terminal Color Display, Inc. 7, 30, 31

1шт.

19

A64737

SLEEVE,19.05mm ID x 431.8mm L

Protective

1шт.

20

87365742

SWITCH

Optical Encoder

1шт.

21

87454709

KNOB

Encoder

1шт.

22

87453957

SWITCH

Home

1шт.

23

87453959

SWITCH

Escape

1шт.

24

87325557

MOUNTING PLATE

Ball Joint

1шт.

25

82038414

HALF BALL

1шт.

26

87353504

KNOB

AFS Monitot Mounting

1шт.

27

82039389

CUP WASHER,12.5mm ID x 50mm OD x 17mm Thk, Glass Filled Nylon

Ball Joint

1шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

29

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

30

87325765

COVER

Ball Joint

1шт.

31

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

M4 x 16, CL12.9

6шт.

32

87555072

DIA KIT, TRACTOR

Mounting, Inc. 2, 5 - 8, 20 - 29, 31 & 32

1шт.

33

87423195

SPACER

4шт.

34

440570A1

STUD

4шт.

35

87346979

CONTROL

Module, NAV II

1шт.

87346979C

CORE-ELECTRONIC CONT

Return Number, CONTROL - for N.A. Only

1шт.

36

87588663

CAP COVER

USB

1шт.

37

440-1044

SCREW,Cross Oval Hd, #4-40 x 1/4"

2шт.

38

87646709

HARNESS

Adapter, Steering Cylinder

1шт.

If Replacing BSN Z7F105441 Articulation Steering Cylinder p/n 87529570 with Cylinder 87552144. Also, Order Adapter Harness 87646709.

1шт.

Выбрано товаров: 41
