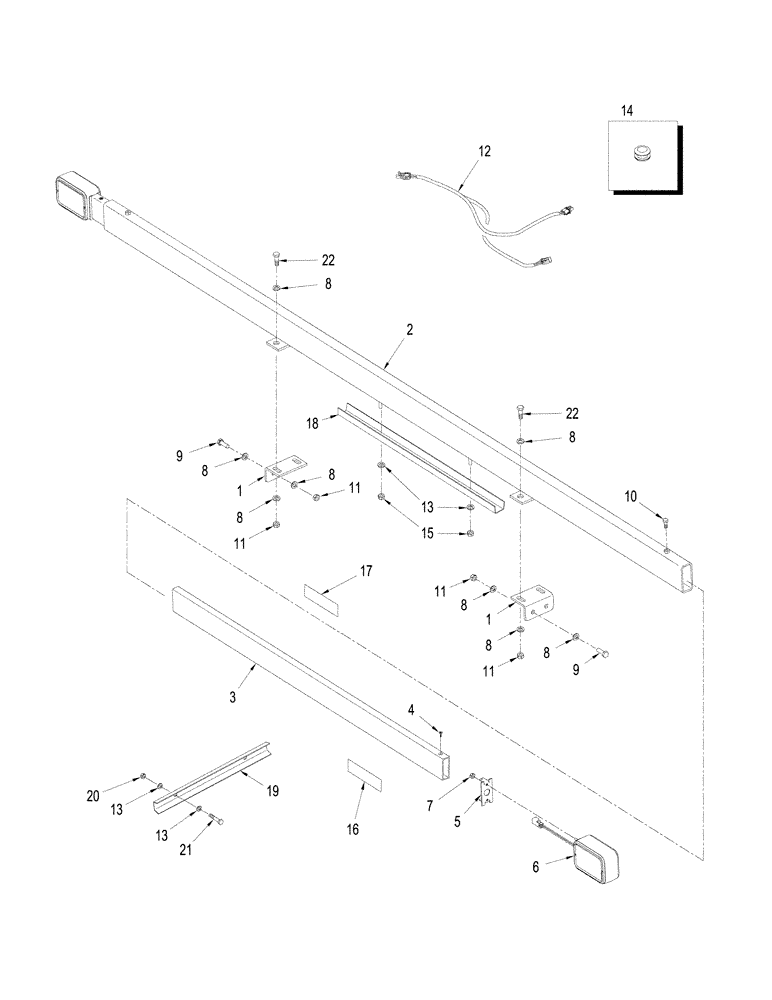

Запчасти Case IH STEIGER 330 (04-28) - LAMPS - MARKER (04) - ELECTRICAL SYSTEMS

1

367194A1

BRACKET

Marker Lamps Bar

2шт.

2

362493A1

SUPPORT TUBE,1016, 800 mm Length

Receiver, Marker Lamps

1шт.

3

362491A1

TUBE,1227.5 mm Length

Marker Lamp

2шт.

4

843-2512

SCREW,Flat , M5 x 12mm, Cl 4.8

4шт.

5

362496A1

BRACKET

Mounting, Marker Lamp

2шт.

6

367321A1

LAMP

Warning, See Figure 04-29

2шт.

7

824-1405

NUT,M5, Cl 5

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

87520424

HARNESS

Marker Lamp

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

14

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

297221A1

DECAL

Red and Orange

4шт.

17

297223A1

DECAL

Yellow

4шт.

18

362624A1

CHANNEL

Wire Guard

2шт.

19

311376A2

CHANNEL

Wire Guard

1шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

21

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
