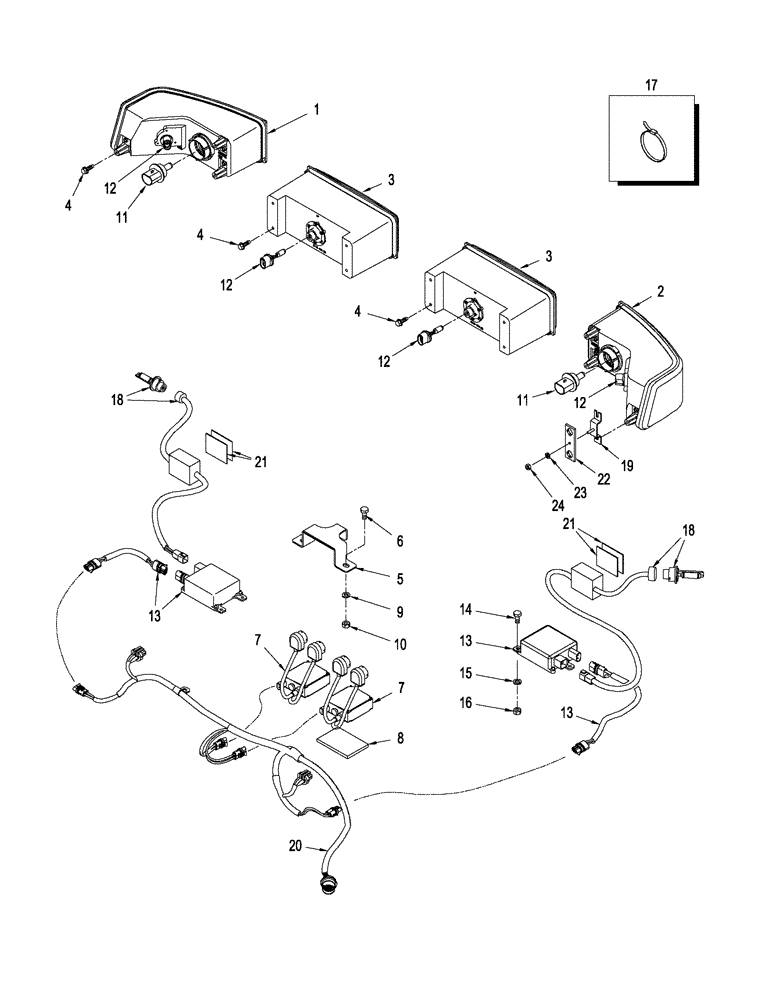

Запчасти Case IH STEIGER 330 (04-26[01]) - LAMPS - REAR FRAME AND FIELD, EUROPE (04) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Halogen, Inc. 1 - 4

2 - 4шт.

1

1964806C1

BEZEL

Work Lamp

1шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

3

276498A1

LENS

Work Lamp

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

5

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

388337A1

INDICATOR LIGHT

Turn / Brake, Rear Frame, Inc. 8 - 10

1шт.

388338A1

INDICATOR LIGHT

Turn / Brake, Rear Frame, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Backing

1шт.

9

3131227R1

BULB,P25-1, 12V, 21W

Amber Turn Lamp

1шт.

9

3131234R1

BULB,P25-2, 12V, 5W

Red Brake Light

1шт.

10

NSS

NOT SOLD SEPARAT

Lens, Red and Amber, with Center Reflector

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

2шт.

320246A1

LAMP

Warning, Cab Roof, Inc. 12 - 14

4шт.

12

183748A1

LENS

Amber

1шт.

13

A41264

BULB,#1156, 12V

1шт.

14

NSS

NOT SOLD SEPARAT

Housing

1шт.

15

389679A1

INDICATOR LIGHT

Turn / Brake, Front Frame, Inc. 16 - 20

1шт.

15

389680A1

INDICATOR LIGHT

Turn / Brake, Front Frame, Inc. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Housing, Lamp

1шт.

17

NSS

NOT SOLD SEPARAT

Lense, Clear & Amber

1шт.

18

3131227R1

BULB,P25-1, 12V, 21W

Amber

1шт.

19

711335R1

BULB,R19/5, 12V, 5W

Clear

1шт.

20

NSS

NOT SOLD SEPARAT

Screw

2шт.
