Запчасти Case IH STEIGER 330 (04-23) - BATTERIES (04) - ELECTRICAL SYSTEMS

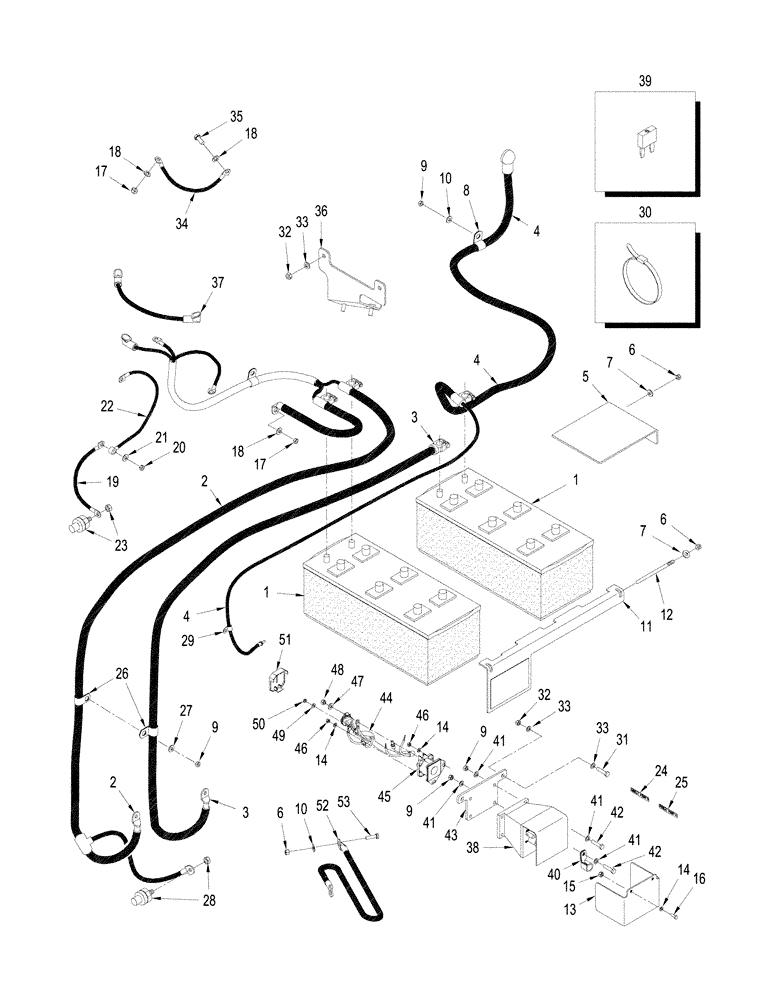

Схема запчастей Case IH STEIGER 330 - (04-23) - BATTERIES (04) - ELECTRICAL SYSTEMS
29
5
6
2
4
27
33
40
43
50
6
52
10
37
1
26
33
41
10
33
21
23
32
28
38
49
44
53
7
45
1
51
36
4
46
14
41
41
35
15
11
24
4
14
48
22
25
31
8
7
18
41
9
39
47
9
14
9
2
3
18
17
42
6
13
42
34
3
46
20
17
9
32
30
16
12

Артикул

Название

Примечание

Количество

1

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

24V / 1000 cca, for Purchase in the United States

2шт.

1

CBCH4DLTW

WET BATTERY

24V / 1000 cca, for Purchase in Canada

2шт.

2

87451581

CABLE ASSY.

Power / Ground, 12V

1шт.

3

87451579

CABLE ASSY.

Ground, 24V

1шт.

4

87451580

CABLE ASSY.

Starter, 24V

1шт.

5

87451582

SHIELD

Terminal

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

8

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

4шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

11

87431631

CLAMP BRACKET

Battery Hold Down

1шт.

12

87413678

ROD

Battery Hold Down

2шт.

13

87437207

SHIELD

Relay

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

830-33006

NUT,Weld, M6

2шт.

16

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

17

829-1412

NUT,M12, Cl 10.9

2шт.

18

892-11012

LOCK WASHER,M12

3шт.

19

87448367

GROUND CABLE

Jump Start Ground, 24V

1шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

87448368

GROUND CABLE

Ground Jumper, 12 / 24V

1шт.

23

A187583

STUD

Jumper

1шт.

24

87427317

DECAL

(-) Negative Post

1шт.

25

87427096

DECAL

(+) Positive Post

1шт.

26

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

28

582785C91

TERMINAL CONNECTOR

Terminal Jumper

1шт.

29

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

34

367786A1

STRAP

Engine Ground

1шт.

35

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

36

365035A6

BRACKET

Cab Harness

1шт.

37

364590A1

CABLE

Circuit Breaker

1шт.

38

389120

RELAY

Inc. 39

1шт.

39

420580

FUSED LINK

Fuse, 80 Amp

2шт.

40

R43926

CLAMP

90 Twist, 3/4"

1шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

42

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

43

87417495

PLATE

Mounting

1шт.

44

87417510

HARNESS

Relay, 12 / 24V

1шт.

45

183038A1

SOLENOID

with Barrier

1шт.

46

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

47

495-11034

WASHER,5/16", SAE

2шт.

48

425-105

NUT,5/16"-18, G5

2шт.

49

495-31022

WASHER,#10

1шт.

50

225-14210

NUT,#10-32

1шт.

51

178148A1

COVER

Plastic, Solenoid Switch

1шт.

52

373555A1

STRAP

Ground

1шт.

Used with ACCUSTEER applications

1шт.

53

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

Used with ACCUSTEER applications

1шт.

Выбрано товаров: 56
