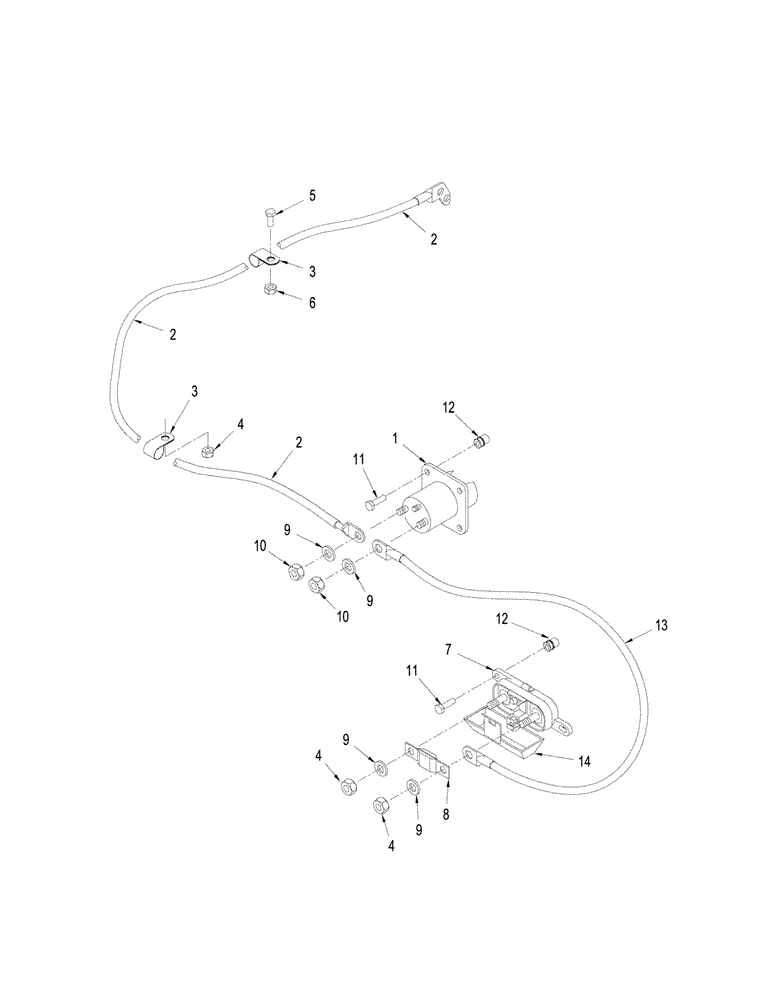

Запчасти Case IH STEIGER 330 (04-22) - GRID HEATER - CABLES (04) - ELECTRICAL SYSTEMS

1

87455571

SOLENOID

Grid Heater, 200 Amp

1шт.

2

87342409

CABLE

Fuse to Air Heater Relay

1шт.

3

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

7

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

8

87455597

FUSE,200A

200 Amp

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

231-1445

NUT,5/16"-18, GB

2шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

12

404287A1

INSERT,M6

Knurled

4шт.

13

87365712

CABLE

Fuse to Air Heater Relay

1шт.

14

87341554

COVER

Glowplug Relay

1шт.
