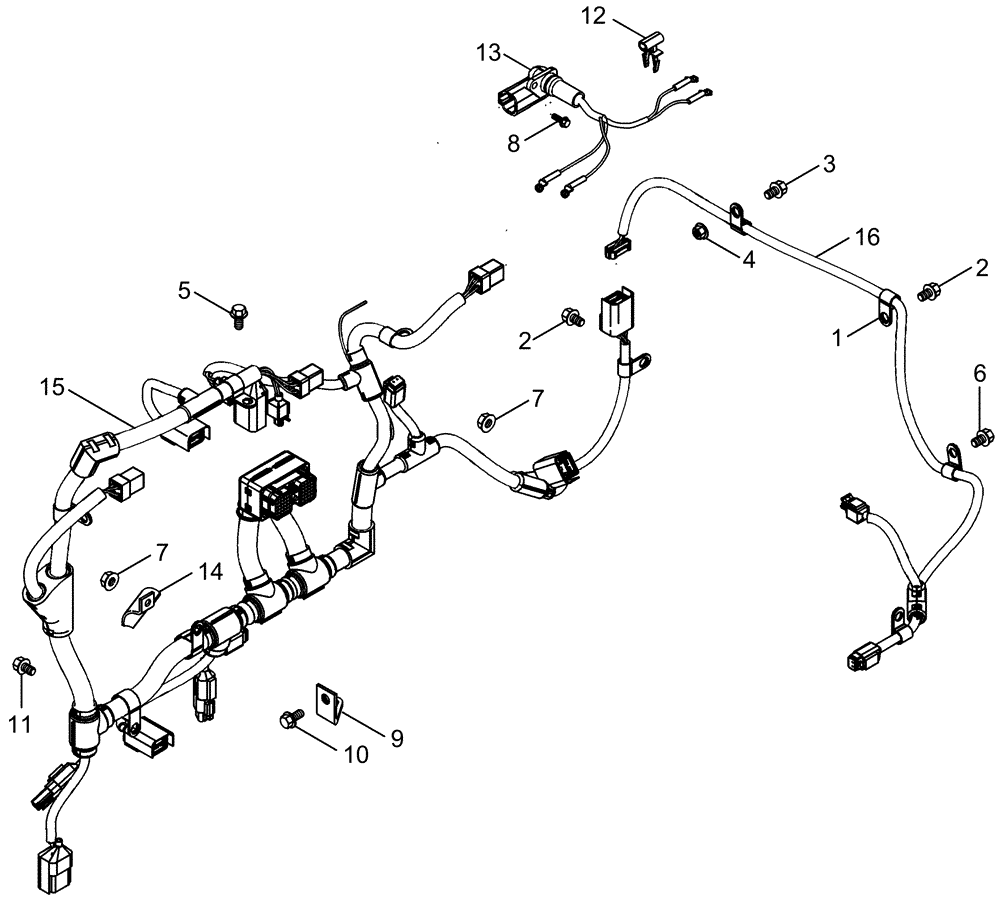

Запчасти Case IH STEIGER 330 (04-20) - HARNESS, ENGINE CONTROL MODULE (04) - ELECTRICAL SYSTEMS

1

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

2

313490A1

BOLT

M10 x 14

2шт.

3

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

76191876

NUT

M8 x 1.25

1шт.

5

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

6

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

1шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

3шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

3шт.

9

J919294

SUPPORT

Tube, Fuel Supply

1шт.

10

87346341

BOLT,Hex Flng, M5 x 0.8 x 12mm, Cl 10.9

1шт.

11

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16: 10.9

1шт.

12

NSS

NOT SOLD SEPARAT

Clip, Harness

8шт.

13

87346235

WIRE HARNESS

Injector Wiring

1шт.

14

87346319

BRACE

1шт.

15

87481082

WIRE HARNESS

Engine ECM

1шт.

16

87346339

WIRE HARNESS

Temperature Sensor

1шт.
