Запчасти Case IH STEIGER 330 (04-18) - HARNESS - FRONT CONSOLE (04) - ELECTRICAL SYSTEMS

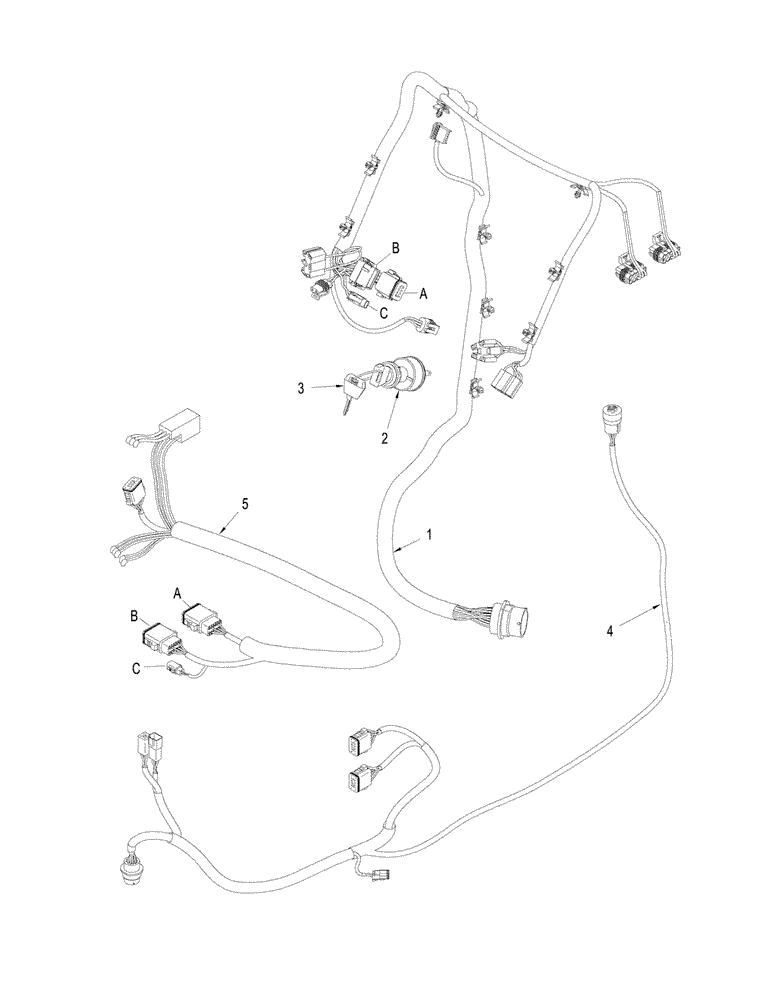

Схема запчастей Case IH STEIGER 330 - (04-18) - HARNESS - FRONT CONSOLE (04) - ELECTRICAL SYSTEMS
2
5
1
4
3

Артикул

Название

Примечание

Количество

1

87332145

HARNESS

Front Console

1шт.

With Manual Shift Transmission

1шт.

1

87332137

HARNESS

Front Console

1шт.

With Power Shift Transmission

1шт.

2

363914A1

IGNITION SWITCH

Inc. 3

1шт.

3

86502201

IGNITION KEY

Ignition

1шт.

4

87332624

HARNESS

Steering Control

1шт.

With ACCUSTEER

1шт.

86993721

CONSOLE

With Self-Cancel, Inc. 5, Also See Figure: 05-03

1шт.

With Power Shift Transmission

1шт.

414332A1

CONTROL

With Self-Cancel, Inc. 4, Also See Figure: 05-02

1шт.

With Manual Shift Transmission

1шт.

5

375681A1

SENSOR

Transmission Control And Turn Signal Self-Cancelling Sensor (Sensor Not Serviced Separately)

1шт.

With Power Shift Transmission

1шт.

5

84180381R

REMAN-SENSOR

STEIGER 280, STEIGER 330, Both (ASN Z6F105001) (NA), STX280, STX330, Both CASE IH (BTW Z6F100023 - Z6F105001), All 4WD TRACTOR, Reman for New PN 375681A1

1шт.

5

84180381C

CORE-SENSOR

Return Number

1шт.

5

416123A1

WIRE HARNESS

Transmission Control and Turn Signal Self-Cancelling Sensor

1шт.

With Manual Shift Transmission

1шт.

Выбрано товаров: 18
