Запчасти Case IH STEIGER 330 (04-15) - HARNESS - FRONT FRAME (04) - ELECTRICAL SYSTEMS

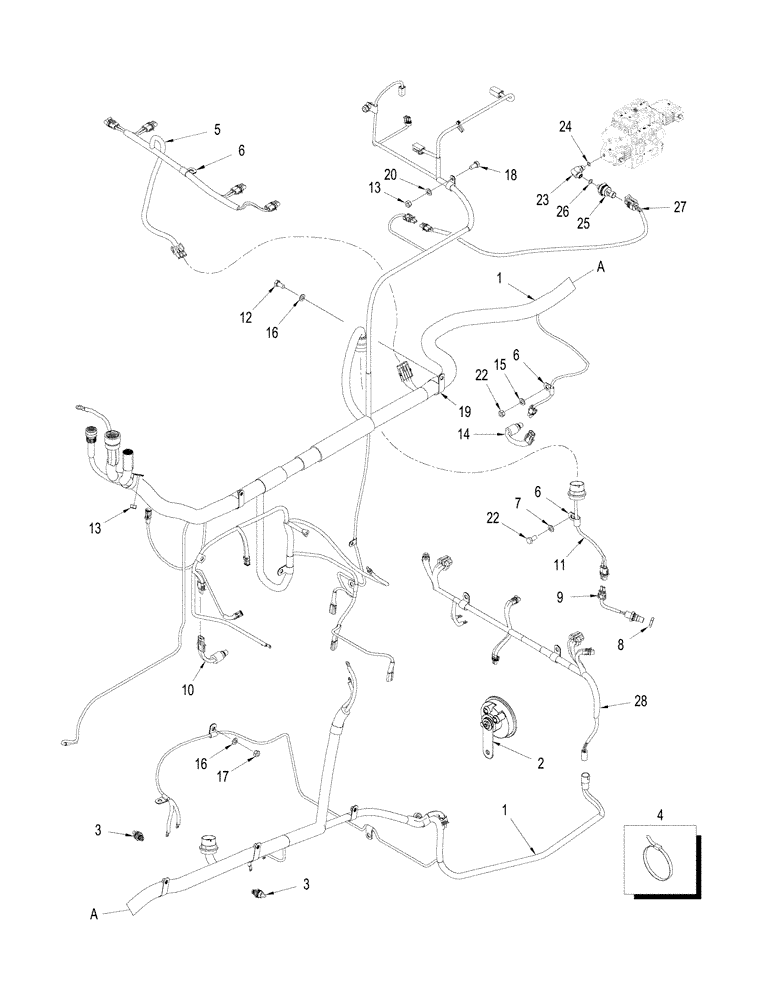

Схема запчастей Case IH STEIGER 330 - (04-15) - HARNESS - FRONT FRAME (04) - ELECTRICAL SYSTEMS
12
2
23
1
18
4
15
17
5
6
22
1
26
28
8
11
20
3
24
6
13
9
25
16
19
22
10
3
13
6
14
27
16
7

Артикул

Название

Примечание

Количество

1

87550730

HARNESS

Front Frame

1шт.

1

87582251

HARNESS

Front Frame, Not Illustrated

1шт.

Used with ACCUSTEER applications

1шт.

2

237582A1

HORN

FC9

1шт.

3

302557A2

SENDER UNIT

SENDER Temperature, Axle Filter

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

5

371122A2

HARNESS

Lower Wiper

1шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

9

A186004

SENSOR

Transmission Engine Speed, Output Shaft

1шт.

10

339529A1

PRESSURE SWITCH

Park Brake

1шт.

11

87332146

HARNESS

Transmission

1шт.

With Manual Shift Transmission

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

330124A1

SWITCH

Temperature, Axle Lube, M18 orb x 1.5

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

19

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

21

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

22

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

23

87539795

ELBOW

Inc. 24

1шт.

24

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

25

375644A1

SENSOR

Presure, Inc. 26

1шт.

26

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

87551744

WIRE HARNESS

Steering Pressure Sensor

1шт.

28

87337671

HARNESS

Light Bar

1шт.

Выбрано товаров: 31
