Запчасти Case IH STEIGER 330 (04-13) - HARNESS - MAIN CAB, DELUXE AND LUXURY CABS (04) - ELECTRICAL SYSTEMS

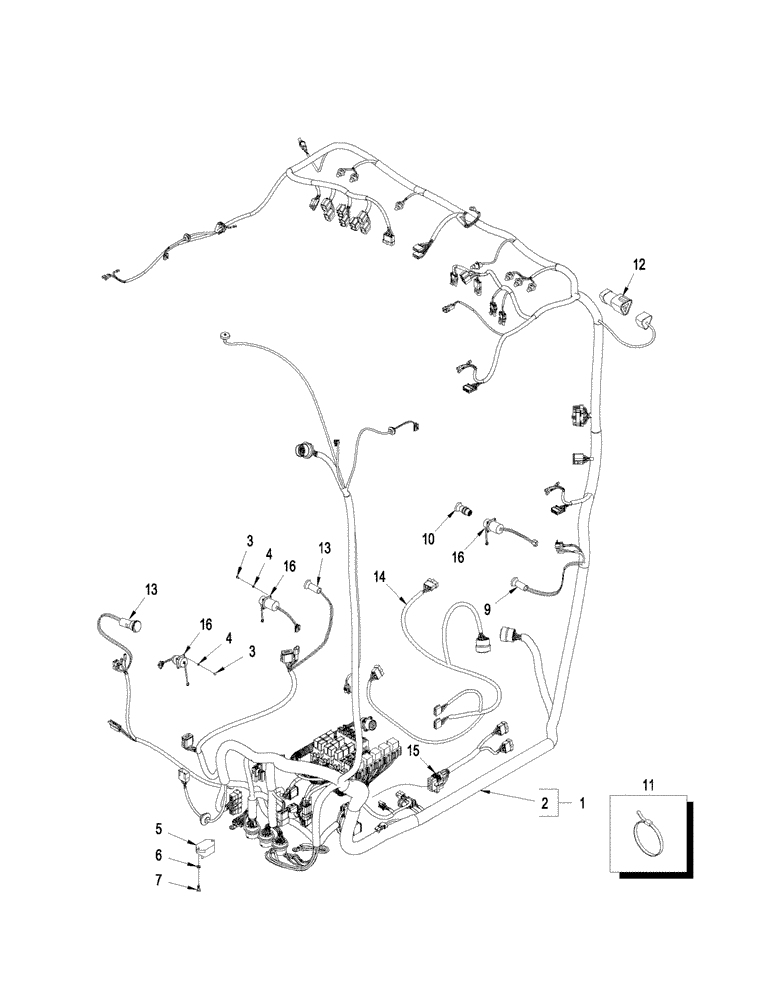

Схема запчастей Case IH STEIGER 330 - (04-13) - HARNESS - MAIN CAB, DELUXE AND LUXURY CABS (04) - ELECTRICAL SYSTEMS
16
13
4
1
12
14
2
10
6
3
5
16
4
7
11
13
15
16
3
9

Артикул

Название

Примечание

Количество

1

87366657

MODULE

Electronics, Inc. 1, See Figure: 04-24, Serial Range: -Z6F105001

1шт.

With Power Shift Transmission

1шт.

1

87601586

MODULE

Electronics, Inc. 1, See Figure: 04-24, Start Serial: Z6F105001

1шт.

With Power Shift Transmission

1шт.

1

87366658

MODULE

Electronics, Inc. 1, See Figure: 04-24, Serial Range: -Z6F105001

1шт.

With Manual Shift Transmission

1шт.

1

87601587

MODULE

Electronics, Inc. 1, See Figure: 04-24, Start Serial: Z6F105001

1шт.

With Manual Shift Transmission

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Main Cab, Serial Range: -Z6F105001

1шт.

The Main Cab Harness is Supplied with the Electronic Module Assy. Also See Figure: 04-24 for Additional Components.

1шт.

3

383986A1

RIVET

12шт.

4

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

12шт.

5

20-2041T2

CIRCUIT BREAKER

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

8

279265A2

SWITCH

Differential Lock Brake, Not Illustrated

1шт.

9

87452321

OUTLET

Power Port

1шт.

10

388810A1

ELEMENT

Pop-Out Lighter, If used

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 7"

7шт.

12

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

13

388813A1

OUTLET

Power

2шт.

14

87332624

HARNESS

ACCUSTEER

1шт.

15

87533993

HARNESS

TPH Controller

1шт.

16

227739A2

POWER SOCKET

Power

3шт.

17

113699A1

RECTIFIER

Diode, High Lighting and Low Lighting, Not Illustrated

2шт.

Выбрано товаров: 25
