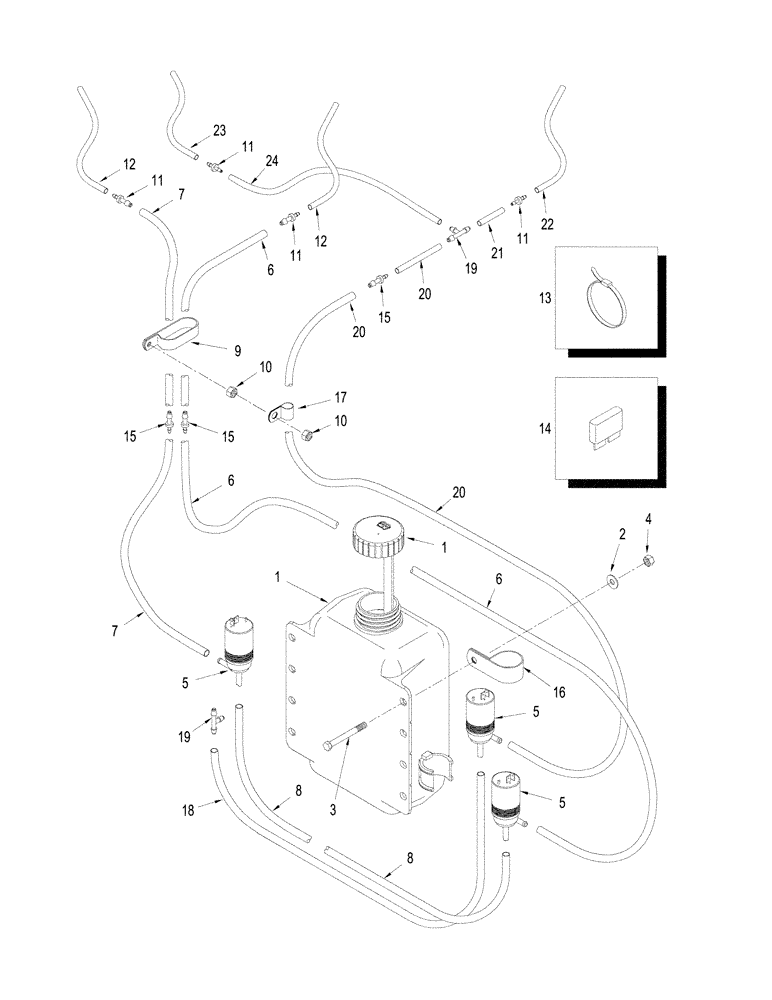

Запчасти Case IH STEIGER 330 (04-06) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

313576A1

RESERVOIR

Windshield Washer

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

5

1964696C2

PUMP

Windshield Washer

3шт.

6

398715A1

HOSE,4.78 mm ID x 7010.40 mm

4775 mm (188"), Front Wiper

1шт.

7

398714A1

HOSE,4.78 mm ID x 5181.60 mm

3302 mm (130"), Rear Wiper

1шт.

8

31-2422

HOSE,4.77 mm ID x 254.00 mm

254 mm (10"), Cut From 4-1056

2шт.

9

369708A1

CLAMP

4шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

11

31-2364

FITTING

3/16 x 7/64

4шт.

12

31-2608

TUBE,10.00"

200 mm (8"), Rear Wiper

2шт.

13

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

14

121414A1

FUSE,20A, Mini, Yellow

1шт.

14

121416A1

FUSE,30A, Mini, Green

1шт.

15

84037530

VALVE

2шт.

16

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

18

31-2866

HOSE,4.77 mm ID x 609.60 mm

160 mm ( 24"), Cut From 4-1056T1

1шт.

19

31-2363

TEE

3шт.

20

31-2936

HOSE,4.77 mm ID x 4775.20 mm

4775 mm (188"), Cut From 4-1056T1

1шт.

21

384139A1

HOSE,4.77 mm ID x 6.00 mm

1шт.

22

384141A1

HOSE,225.00 mm

1шт.

23

384142A1

HOSE,250.00 mm

Cut From 31-2607T1

1шт.

24

384140A1

HOSE,4.77 mm ID x 762.00 mm

1шт.
