Запчасти Case IH STEIGER 330 (03-01) - THROTTLE (03) - FUEL SYSTEM

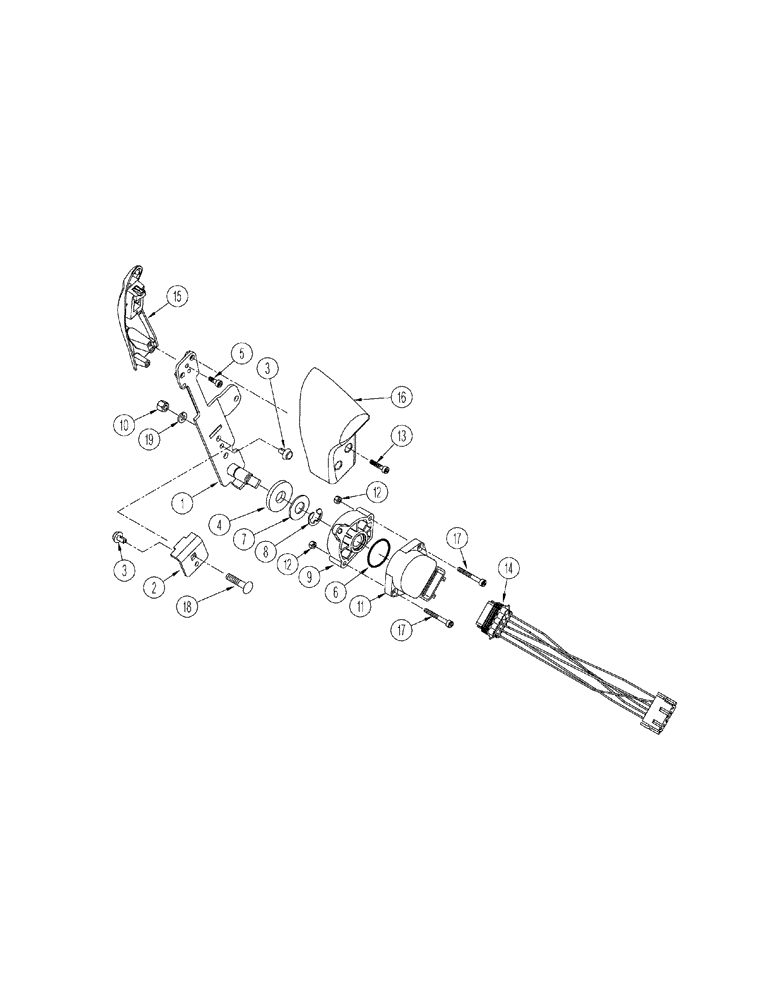

Схема запчастей Case IH STEIGER 330 - (03-01) - THROTTLE (03) - FUEL SYSTEM
10
15
2
16
19
9
3
18
17
17
14
5
6
8
11
3
4
7
12
13
1
12

Артикул

Название

Примечание

Количество

1

402797A1

BRACKET

Engine Throttle

1шт.

With Manual Shift Transmission

1шт.

1

367607A1

BRACKET

Engine Throttle

1шт.

With Power Shift Transmission

1шт.

2

258734A2

BRACKET

Throttle Friction Device

1шт.

3

259040A1

INSERT

Friction Device

2шт.

4

237486A1

WASHER

2шт.

5

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

M4 x 16

3шт.

6

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

7

495-81022

WASHER,17/32" x 1 1/8" x .060"

1шт.

8

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

9

239491A1

BUSHING

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

259012A1

POTENTIOMETER,2500 Ohm

Throttle Control

1шт.

With Power Shift Transmission

1шт.

11

402751A1

POTENTIOMETER,2500 Ohm

Throttle Control

1шт.

With Manual Shift Transmission

1шт.

12

832-46404

NUT,M4 x .7, Cl 8

2шт.

13

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

2шт.

14

276352A1

HARNESS

Electronic Throttle

1шт.

With Power Shift Transmission

1шт.

with Manual Shift Transmission with ARU

1шт.

15

87622401

GRIP

Throttle Face Plate

1шт.

16

293388A2

GRIP

Throttle, See Figure: 06-03

1шт.

with Manual Shift Transmission with ARU

1шт.

16

388705A1

GRIP

Throttle, See Figure: 06-03

1шт.

16

388864A1

GRIP

Throttle, Leather, See Figure: 06-03

1шт.

17

864-4035

HEX SOC SCREW,M4 x 35mm, Cl 8.8

2шт.

18

811-6030

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 30mm, Cl 8.8

1шт.

19

892-11006

LOCK WASHER,M6

1шт.
