Запчасти Case IH STEIGER 330 (02-22) - CRANKSHAFT (02) - ENGINE

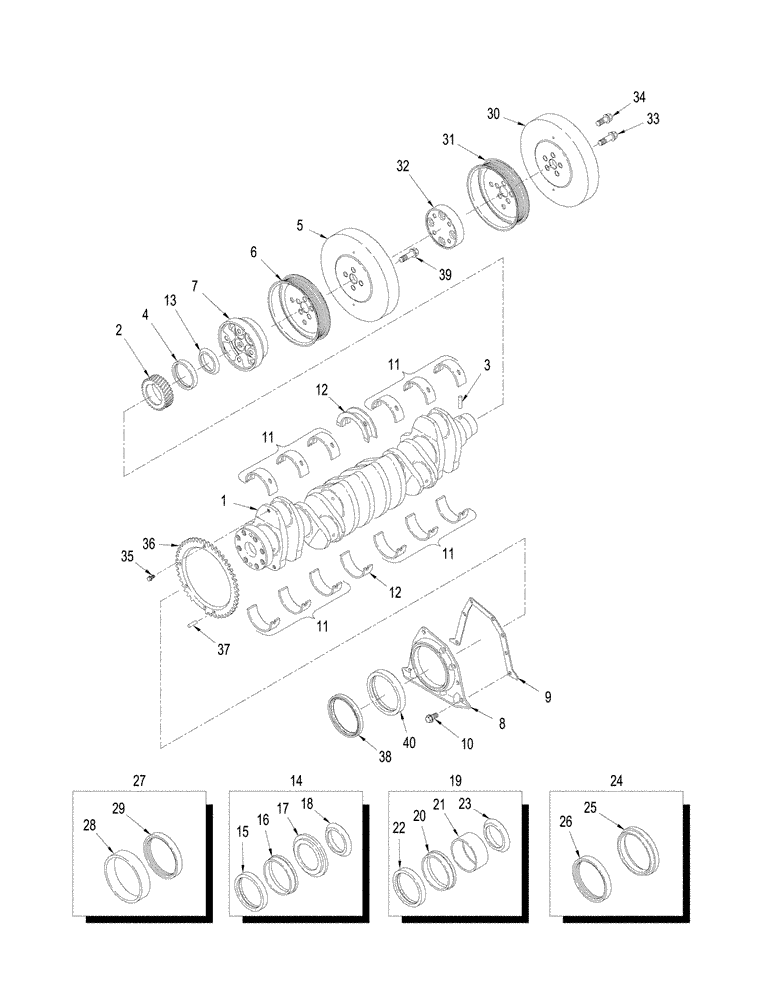

Схема запчастей Case IH STEIGER 330 - (02-22) - CRANKSHAFT (02) - ENGINE
15
5
37
12
17
11
1
40
10
8
30
18
35
20
11
24
6
26
11
19
33
12
3
14
25
27
34
38
7
23
21
36
28
11
16
2
13
39
4
22
32
29
31
9

Артикул

Название

Примечание

Количество

1

87335711

CRANKSHAFT

With Speed Indicator Ring, Inc. 30 - 32

1шт.

STX280

1шт.

STEIGER 280

1шт.

1

87335716R

REMAN-CRANKSHAFT

STEIGER 280, STEIGER 330 BOTH (ASN Z6F105001), STX280, STX330 BOTH (BTW Z6F100023 - Z6F105001), Reman for New P/N 87335711

1шт.

1

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

1

87356215

CRANKSHAFT

With Speed Indicator, Inc. 30 -32

1шт.

STX330

1шт.

STEIGER 330

1шт.

1

87356215R

REMAN-CRANKSHAFT

STEIGER 330 4WD TRACTOR (ASN Z6F105001) (NA), STX330 CASE IH 4WD TRACTOR (BTW Z6F100023 - Z6F105001), Both With Speed Indicator

1шт.

1

87356215C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, , Order A77790

1шт.

5

87349482

DAMPER,279.5mm OD

Vibration

1шт.

STX280

1шт.

STEIGER 280

1шт.

6

J943660

PULLEY

1шт.

STX280

1шт.

STEIGER 280

1шт.

7

87357647

ADAPTER

1шт.

STX280

1шт.

STEIGER 280

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

Rear Cover, Crankshaft

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Oversize, 0.25 mm

6шт.

11

J945932

BEARING SET

Main, Oversize, 0.50 mm

6шт.

11

J945933

BEARING SET

Main, Oversize, 0.75 mm

6шт.

11

J945934

BEARING SET

Main, Oversize, 1.00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Oversize, 0.25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Oversize, 0.50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Oversize, 0.75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Oversize, 1.00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Sleeve, Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve, Wear

1шт.

29

NSS

NOT SOLD SEPARAT

Seal, Oil

1шт.

30

87357611

DAMPER

1шт.

STX330

1шт.

STEIGER 330

1шт.

31

J943978

PULLEY,199.42mm OD

1шт.

STX330

1шт.

STEIGER 330

1шт.

32

87357579

ADAPTER

1шт.

STX330

1шт.

STEIGER 330

1шт.

33

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

4шт.

STX330

1шт.

STEIGER 330

1шт.

34

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 60

5шт.

STX330

1шт.

STEIGER 330

1шт.

35

87335729

BOLT

M6 x 1 x 12

4шт.

36

87335719

RING

Speed Indicator

1шт.

37

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

38

87434865

SEAL

Slinger, Rear Oil

1шт.

39

87357652

BOLT

M14 x 35

4шт.

STX280

1шт.

STEIGER 280

1шт.

40

NSS

NOT SOLD SEPARAT

Seal, Order J934486

1шт.

Выбрано товаров: 78
