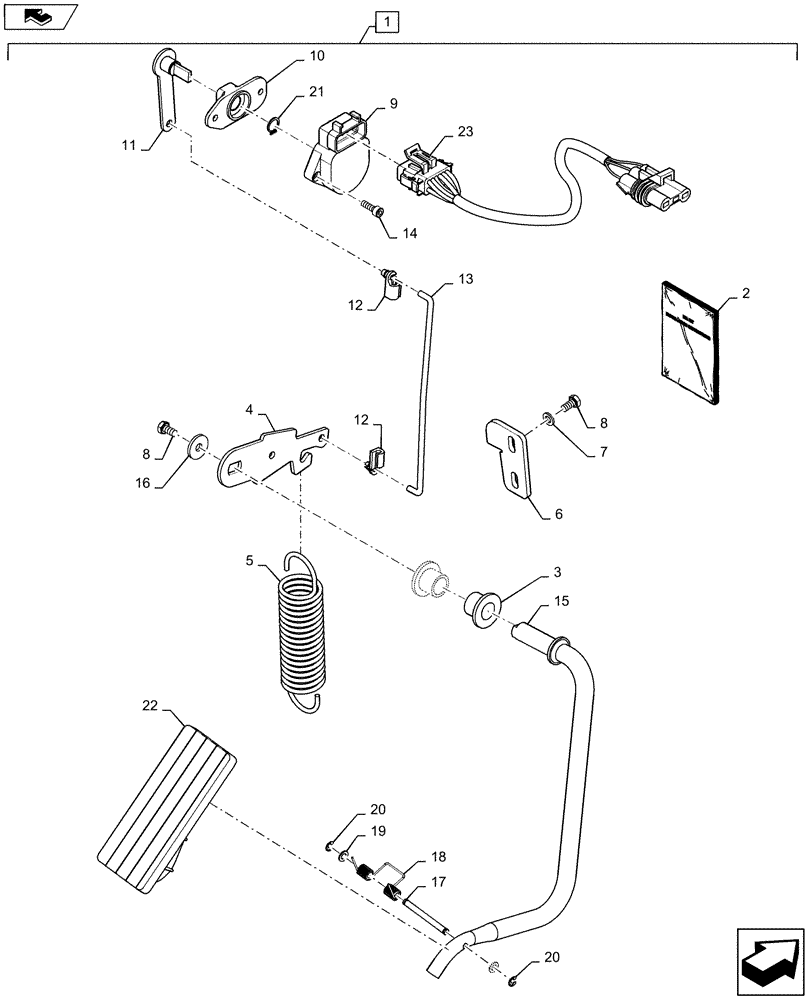

Запчасти Case IH STEIGER 330 (88.090.02) - DIA KIT, DECELERATOR - 2007 (88) - ACCESSORIES

1

710279016

KIT

Decelerator - 2007, Incl 2 - 23

1шт.

2

87487605

INSTRUCTION

Deceleration Pedal

1шт.

3

300891A1

FLANGED BEARING

Bronze

2шт.

4

248844A1

LEVER

1шт.

5

278211A1

SPRING

Extension

1шт.

6

281115A1

BRACKET

Decel Stop

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

9

259012A1

POTENTIOMETER,2500 Ohm

1шт.

10

258524A2

BUSHING

Adapter

1шт.

11

313273A2

PIN

Potentiometer

1шт.

12

60-2404T1

RETAINER

2шт.

13

281125A1

ROD

Potentiometer

1шт.

14

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

15

328353A2

ROD

Decelerator

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

17

255291A1

PIN,5mm OD x 56mm L

Throttle Pad

1шт.

18

256776A1

SPRING

Foot Throttle

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

800-435

CIRCLIP,M5

Ring, External Retaining

2шт.

21

800-1112

SNAP RING,M12, Ext

Retaining Pin

1шт.

22

297853A2

PEDAL

Foot Throttle

1шт.

23

87545500

HARNESS

Decel Pedal Option

1шт.
