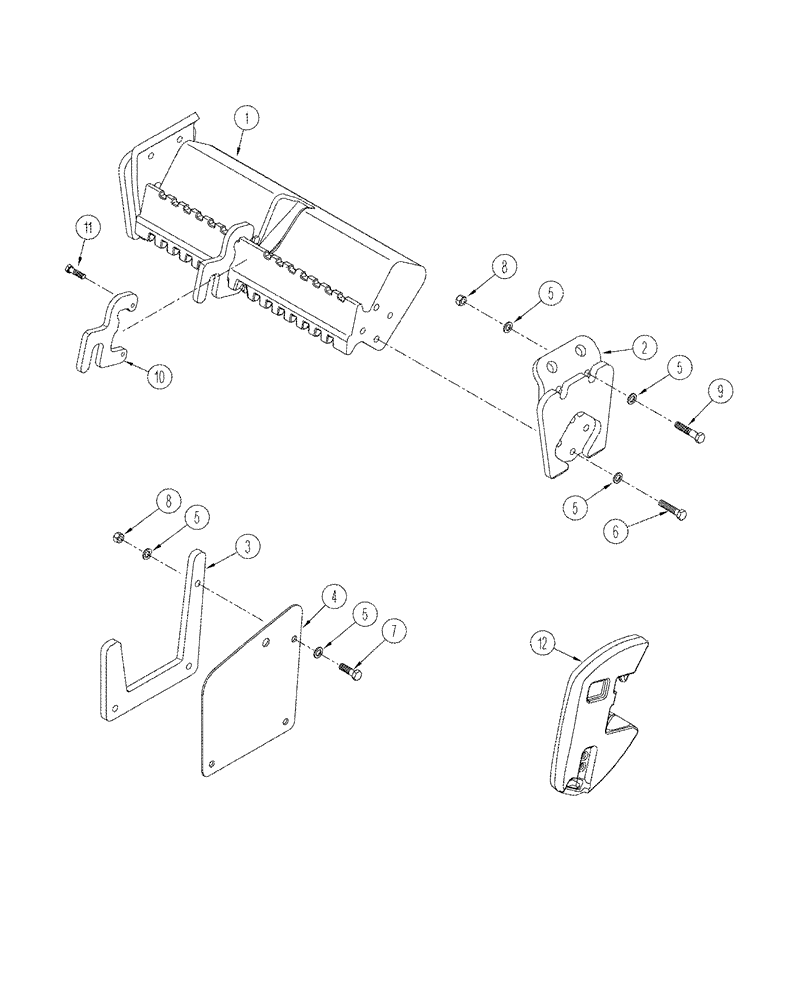

Запчасти Case IH STEIGER 330 (09-48) - WEIGHTS - REAR FRAME (09) - CHASSIS

1

413394A1

FRAME

Hanger

1шт.

Order From Machinery Price List

1шт.

2

413390A1

BRACKET

Support

2шт.

3

413391A2

BRACKET

Support

2шт.

4

413392A1

PLATE

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

24шт.

6

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

8шт.

7

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

6шт.

8

829-1420

NUT,M20, Cl 10

8шт.

9

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

10

413393A1

PLATE

Lock

2шт.

11

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

12

405846A3

WEIGHT

45 kg (100 lb)

1шт.
