Запчасти Case IH STEIGER 330 (09-41) - AIR CONDITIONING - DUCTS (09) - CHASSIS

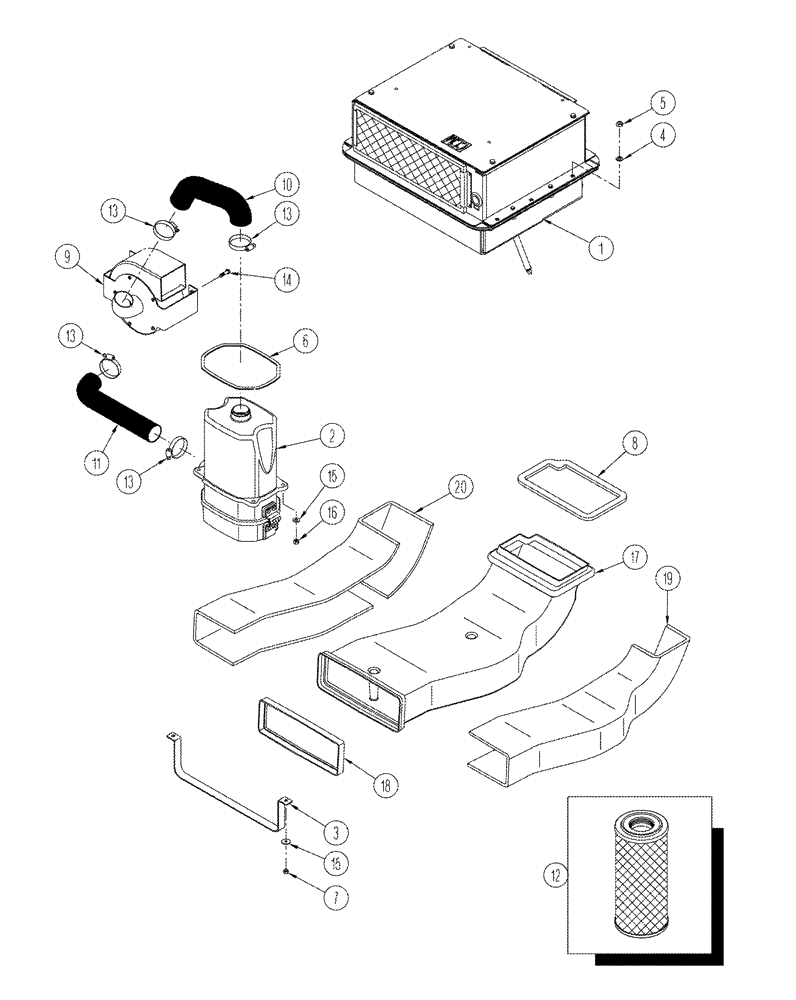

Схема запчастей Case IH STEIGER 330 - (09-41) - AIR CONDITIONING - DUCTS (09) - CHASSIS
18
13
8
1
2
20
9
6
10
14
13
3
15
19
16
7
17
13
12
11
5
13
15
4

Артикул

Название

Примечание

Количество

1

87365878

AIR CONDITIONER

with Auto Temp Control, See Figure: 09-44

1шт.

2

87596194

HOUSING

Air Filter, See Figure: 09-42

1шт.

3

384950A2

BRACKET

Support, Duct

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

359586A1

SEAL

Filter

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

278967A3

GASKET

Floor Plate

1шт.

9

NSS

NOT SOLD SEPARAT

Blower Assy., See Figure: 09-43

1шт.

10

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

11

87380071

HOSE,54.00 mm ID x 975.00 mm, SAE 20R4

Air Intake

1шт.

12

259288A1

CAB FILTER

Air

1шт.

13

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

4шт.

14

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

17

327851A1

DUCT

Air

1шт.

18

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

Air Duct

1шт.

19

328051A2

FOAM INSULATION

Duct, Right-Hand

1шт.

20

328052A2

FOAM INSULATION

Duct, Left-Hand

1шт.

Выбрано товаров: 20
