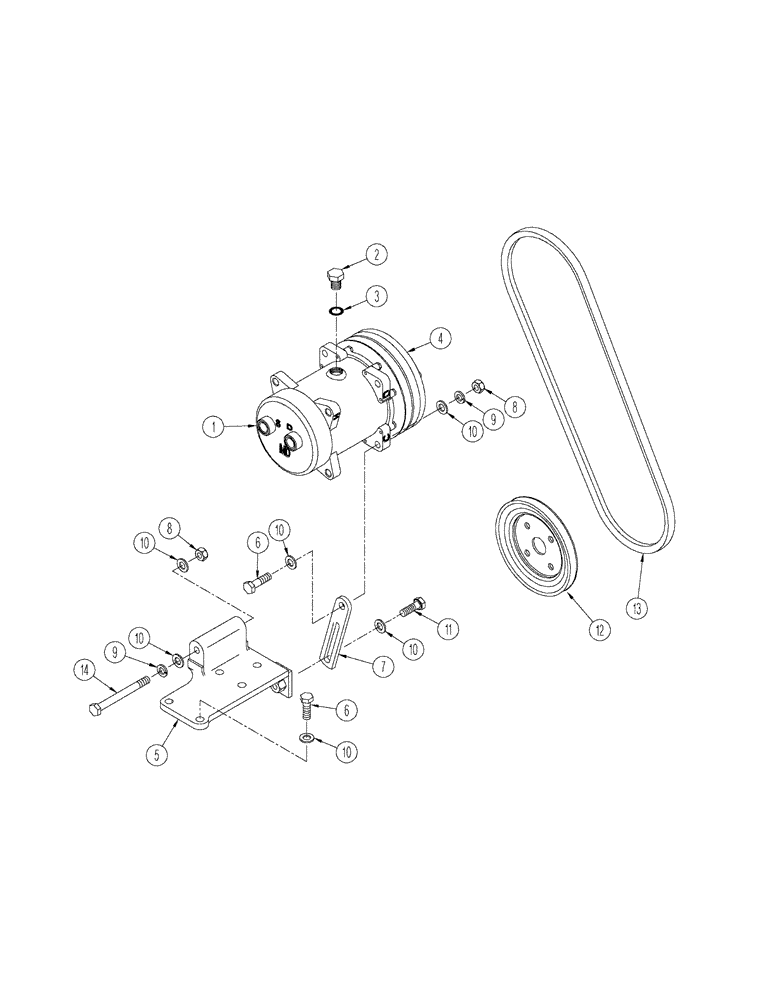

Запчасти Case IH STEIGER 330 (09-39) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

86993462

AIRCOND. COMPRESSOR

Inc. 2 - 4

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993462R

REMAN-COMPRESSOR

STEIGER 280, STEIGER 330 both (ASN Z6F105001), STX280, STX330 both (BTW Z6F100023 - Z6F105001)

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

A49667

PLUG

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

4

135324A1

CLUTCH

1шт.

5

419742A1

BRACKET

Mounting, A/C Compressor

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

5шт.

7

87306665

BRACKET

Adjustment, AC Compressor/ Belt Tensioner

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

12

431716A1

PULLEY,147mm OD

Accessory Drive

1шт.

13

A189040

V-BELT,0.50" W x 46.00" L

A/C

1шт.

14

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.
