Запчасти Case IH STEIGER 330 (09-34) - HOOD AND SUPPORT (09) - CHASSIS

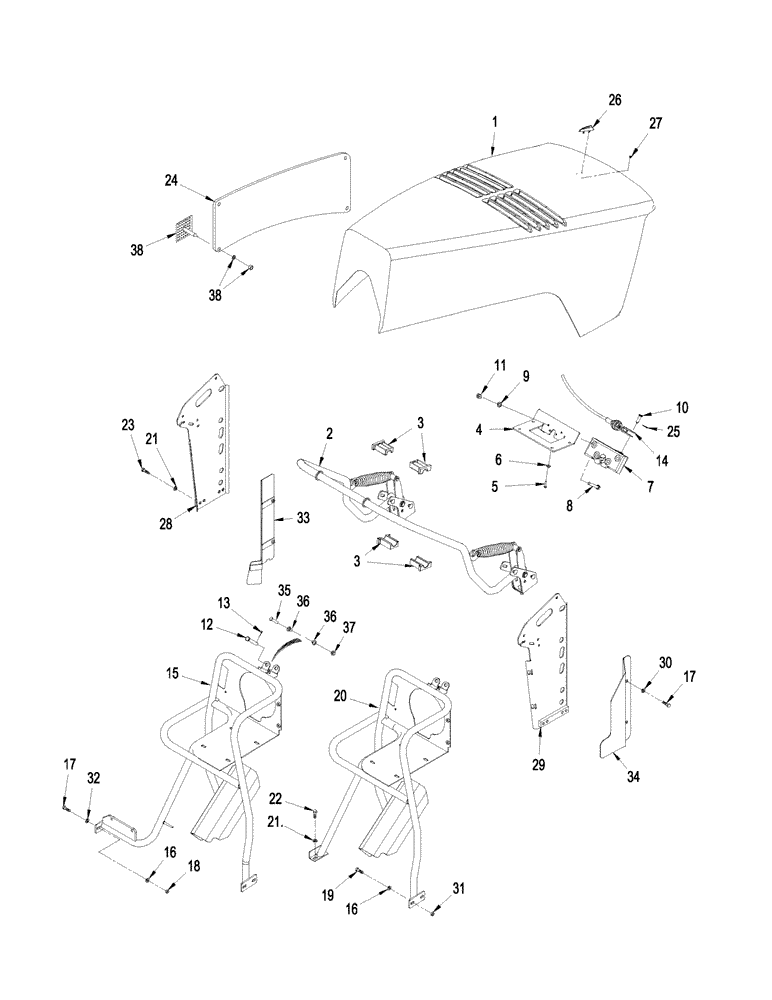

Схема запчастей Case IH STEIGER 330 - (09-34) - HOOD AND SUPPORT (09) - CHASSIS
10
14
13
5
9
32
1
23
11
24
3
33
38
26
21
29
18
36
36
8
17
3
17
25
27
38
20
35
30
21
28
15
31
22
4
2
6
37
12
16
34
16
19
7

Артикул

Название

Примечание

Количество

1

87310084

HOOD

Engine

1шт.

2

313975A2

ARM

Lift, Rear, See Figure: 09-34

1шт.

3

314842A3

BEARING

Lift Arm

4шт.

4

87446918

BRACKET

Hood Latch

1шт.

5

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

4шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

318159A1

LATCH

Hood, Serial Range: -Z7F105942

1шт.

7

87550202

LATCH

Hood, Start Serial: Z7F105942

1шт.

8

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

728-620

CLEVIS PIN,M6 x 20

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

728-16100

CLEVIS PIN,M16 x 100

Striker

1шт.

13

733-4032

COTTER PIN,M4 x 32

1шт.

14

443297A1

CABLE,2363mm L

1шт.

15

87448847

SUPPORT

Hood

1шт.

Without ACCUSTEER

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

19

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

Without ACCUSTEER

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

With ACCUSTEER

1шт.

20

87447869

SUPPORT

Hood

1шт.

With ACCUSTEER

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

22

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

23

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

24

334209A2

FOAM INSULATION

1шт.

25

733-1610

COTTER PIN,M1.6 x 10

1шт.

26

87353799

GUIDE

Hood Sight

1шт.

27

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

28

339534A4

SUPPORT

Radiator, Left-Hand

1шт.

29

339537A4

SUPPORT

Radiator, Right-Hand

1шт.

30

399576A1

WASHER

4шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

33

389195A2

COVER

Fan, LH

1шт.

34

389191A2

COVER

Fan, RH

1шт.

35

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

Striker, Start Serial: Z7F105942

1шт.

36

87550203

GUIDE BUSHING

Striker Bolt, Start Serial: Z7F105942

2шт.

37

832-10410

NUT,M10 x 1.5, Cl 8

, Start Serial: Z7F105942

1шт.

38

399007A1

ANCHOR

Insulation Mounting Kit

1шт.

Выбрано товаров: 44
