Запчасти Case IH STEIGER 330 (09-29) - FRONT FRAME, WITH ACCUSTEER (09) - CHASSIS

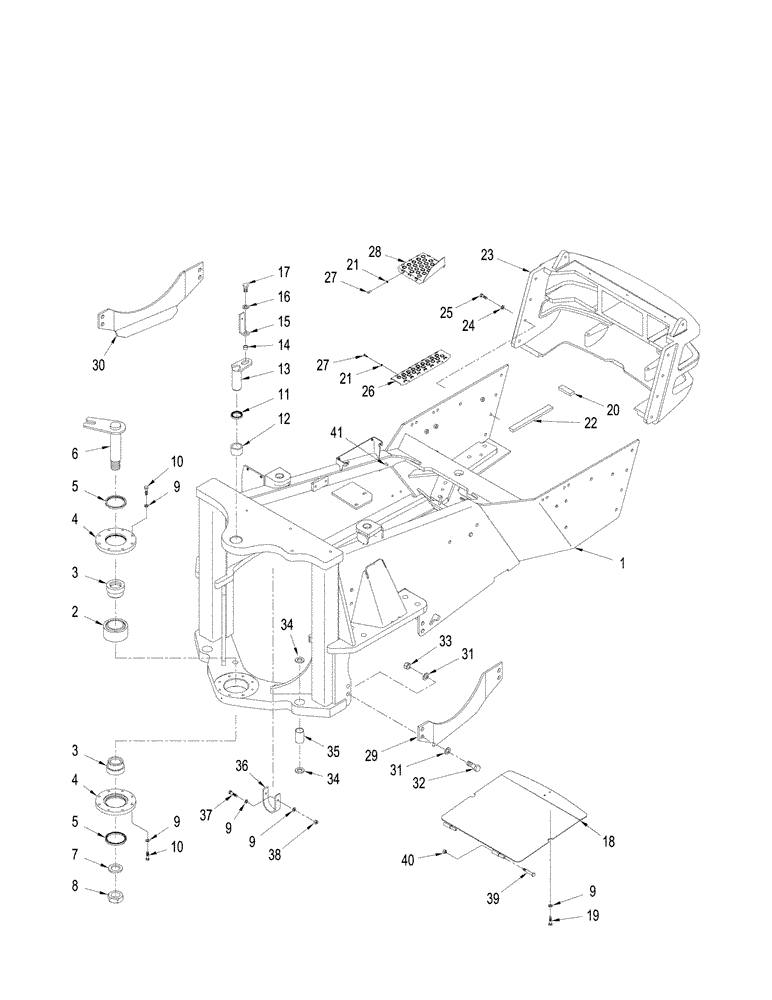

Схема запчастей Case IH STEIGER 330 - (09-29) - FRONT FRAME, WITH ACCUSTEER (09) - CHASSIS
4
17
31
9
27
35
39
38
31
9
36
19
27
26
34
12
6
14
15
23
1
9
20
30
24
28
8
29
5
32
25
16
21
3
18
2
5
9
7
10
34
9
22
3
21
4
13
40
11
10
41
37
33

Артикул

Название

Примечание

Количество

1

428452A1

FRAME

Front

1шт.

2

330042A1

SPHERICAL BEARING,76.2mm ID x 120.7mm OD x 66.7mm W

1шт.

3

330305A1

SLEEVE

2шт.

4

330309A1

PLATE

Retainer

2шт.

5

S92653

WIPER

2шт.

6

359226A1

PIN

1шт.

7

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1шт.

8

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

11

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

12

331935A1

BUSHING

1шт.

13

87444051

PIN

1шт.

14

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

15

87452138

BRACKET

Mounting, Bumper

1шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

18

87316978

COVER

Access Door

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

20

396412A1

RUBBER STRIP

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

22

328197A1

SEAL

3шт.

23

431458A1

BUMPER

Front, See Figure: 09-32

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

25

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

26

385509A1

STEP

Frame

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

15шт.

28

385529A2

STEP

Platform

1шт.

29

412508A1

PLATE

Right-Hand

1шт.

30

412507A1

PLATE

Left-Hand

1шт.

31

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

32

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

33

829-1420

NUT,M20, Cl 10

4шт.

34

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

4шт.

35

348224A2

BUSHING

2шт.

36

431462A1

SHIELD

Driveshaft

1шт.

37

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

39

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

40

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

41

426285A1

STUD

Threaded

4шт.

Выбрано товаров: 41
