Запчасти Case IH STEIGER 330 (09-19) - CONSOLE - RIGHT HAND ARMREST, ELECTRIC, BSN Z7F105745 (09) - CHASSIS

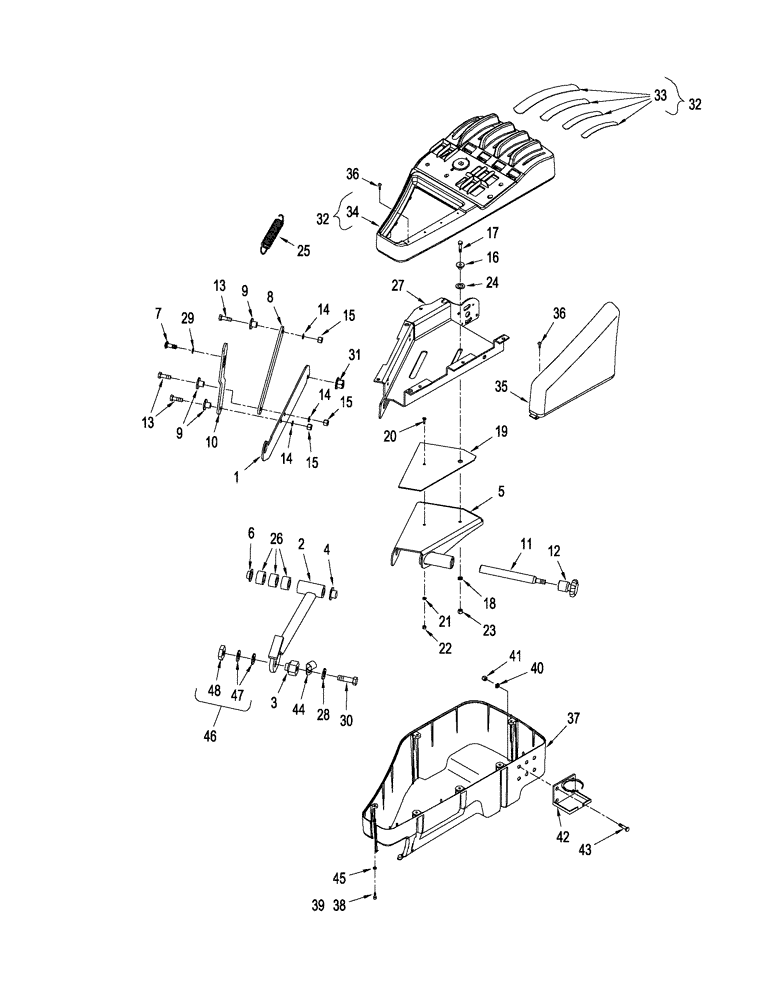

Схема запчастей Case IH STEIGER 330 - (09-19) - CONSOLE - RIGHT HAND ARMREST, ELECTRIC, BSN Z7F105745 (09) - CHASSIS
26
25
15
16
9
33
43
14
29
42
12
19
45
8
31
27
9
15
18
14
3
2
6
41
38
37
10
22
47
13
1
21
44
40
32
14
34
11
35
15
17
36
30
32
48
28
4
5
36
7
24
13
39
20
46
23

Артикул

Название

Примечание

Количество

87519426

SUPPORT

Electric, Inc. 1 - 27, 29

1шт.

With Power Shift Transmission

1шт.

1

NSS

NOT SOLD SEPARAT

Plate

1шт.

2

NSS

NOT SOLD SEPARAT

Support

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Console Support

1шт.

4

185062R1

BUSHING

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Lower

1шт.

6

294296A1

BUSHING

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Special

1шт.

8

NSS

NOT SOLD SEPARAT

Link

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Shoulder

3шт.

10

NSS

NOT SOLD SEPARAT

Bracket

1шт.

11

NSS

NOT SOLD SEPARAT

Bolt, Special

1шт.

12

319870A1

KNOB

Armrest Adjustment

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

16

277582A1

WASHER

2шт.

17

628-6025

BOLT,Hex, M6 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

277576A1

SPACER

1шт.

20

840-1414

SCREW,Pan, Cl 4.8

1шт.

21

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

22

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

23

832-10406

NUT,M6 x 1, Cl 8

2шт.

24

277570A1

WASHER

2шт.

25

NSS

NOT SOLD SEPARAT

Spring

1шт.

26

294295A1

NYLON BEARING,19.08 mm ID x 20.79 mm OD x 17 mm

3шт.

27

NSS

NOT SOLD SEPARAT

Support, Upper

1шт.

28

895-15012

WASHER,M12 x 28 x 2.5

1шт.

29

NSS

NOT SOLD SEPARAT

Washer, Ribbed

1шт.

30

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

31

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

32

87314378

CONSOLE

Upper, with Decals, Inc. 33 & 34

1шт.

Luxury Cab

1шт.

Deluxe Cab

1шт.

33

407759A1

DECAL

Throttle / EH Levers

1шт.

Luxury Cab

1шт.

Deluxe Cab

1шт.

34

87314379

COVER

Upper

1шт.

Luxury Cab

1шт.

Deluxe Cab

1шт.

35

277204A2

CUSHION

Vinyl

1шт.

Deluxe Cab

1шт.

35

358812A2

CUSHION ASSY.

Leather

1шт.

Luxury Cab

1шт.

36

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4шт.

37

361350A1

HOUSING

Lower

1шт.

Without Advanced Farming Systems (AFS)

1шт.

37

87339621

HOUSING

Lower

1шт.

With Advanced Farming Systems (AFS)

1шт.

38

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

6шт.

With Advanced Farming Systems (AFS)

1шт.

39

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

Without Advanced Farming Systems (AFS)

1шт.

40

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

41

824-1404

NUT,M4, Cl 5

4шт.

42

331649A1

HOLDER

Cup

1шт.

43

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

4шт.

44

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

45

893-11004

LOCK WASHER,Ext Tooth, M4

6шт.

46

87396230

BUSHING

Console, Inc. 3, 47 & 48

1шт.

47

NSS

NOT SOLD SEPARAT

Washer, Bronze

2шт.

48

NSS

NOT SOLD SEPARAT

Nut, Lock, 1"

1шт.

Выбрано товаров: 64
