Запчасти Case IH STEIGER 330 (09-10) - DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH (09) - CHASSIS

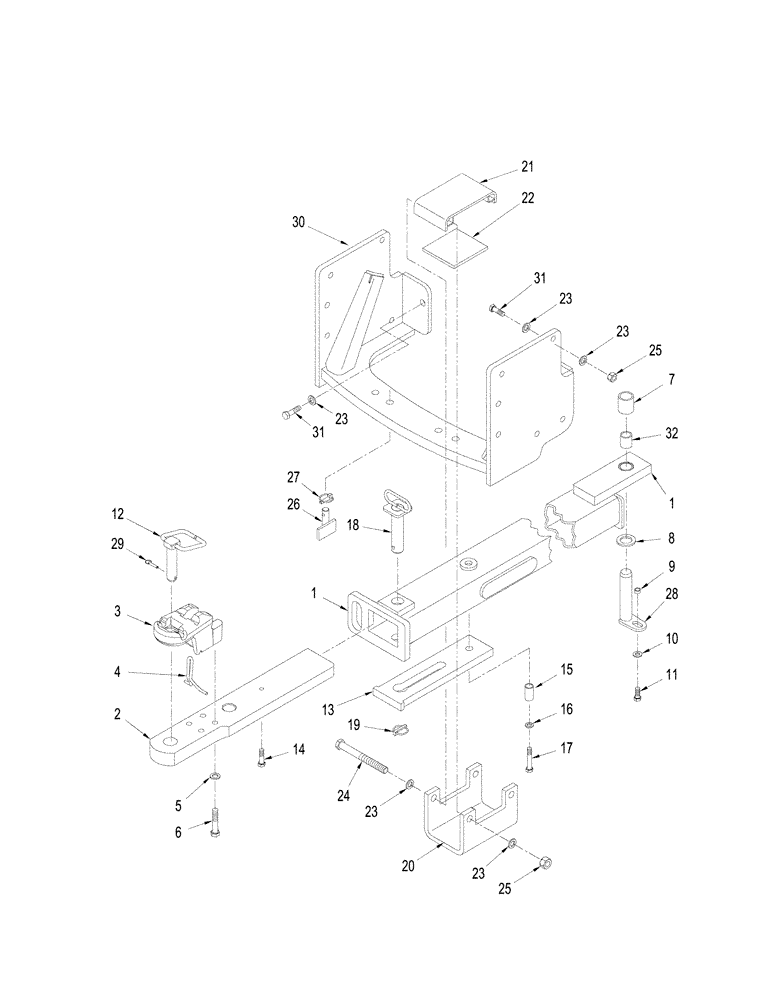

Схема запчастей Case IH STEIGER 330 - (09-10) - DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH (09) - CHASSIS
17
11
12
13
14
22
24
19
21
28
23
27
25
8
1
30
20
31
23
23
18
16
23
2
1
4
5
15
9
3
29
1
7
31
6
26
25
10
23

Артикул

Название

Примечание

Количество

1

402663A1

DRAWBAR

Receiver

1шт.

2

360219A3

DRAWBAR

1шт.

3

375719A1

STRAP

Hammer, Drop Pin

1шт.

4

375721A1

PIN

Drop PIn

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

4шт.

7

361696A2

SPACER

1шт.

8

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4" x 2-3/4" x 1/4"

1шт.

9

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

10

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

11

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

12

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

13

430620A1

PLATE, SPACER

PLATE,SPACER

1шт.

14

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

15

363131A2

SPACER

1шт.

16

495-21069

WASHER,5/8"

1шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

18

403209A1

PIN,44.45mm OD x 223mm L

1шт.

19

19-1041

LOCK PIN,7/16" x 2"

1шт.

20

403217A1

YOKE

1шт.

21

403218A1

COVER ASSY

1шт.

22

363540A1

SPACER

1шт.

23

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

24

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

2шт.

25

829-1424

NUT,M24, Cl 10

2шт.

26

403219A1

PIN ASSY.

2шт.

27

19-6056

LOCK PIN,7/16" x 1 3/4"

2шт.

28

195941A1

PIN,44.37mm OD x 205mm L

1шт.

29

393878A1

PIN

1шт.

30

87441225

HANGER

Drawbar Support

1шт.

31

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

32

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

Drawbar Receiver

1шт.

Выбрано товаров: 32
