Запчасти Case IH STEIGER 330 (09-08) - DRAWBAR - EXTENDABLE (09) - CHASSIS

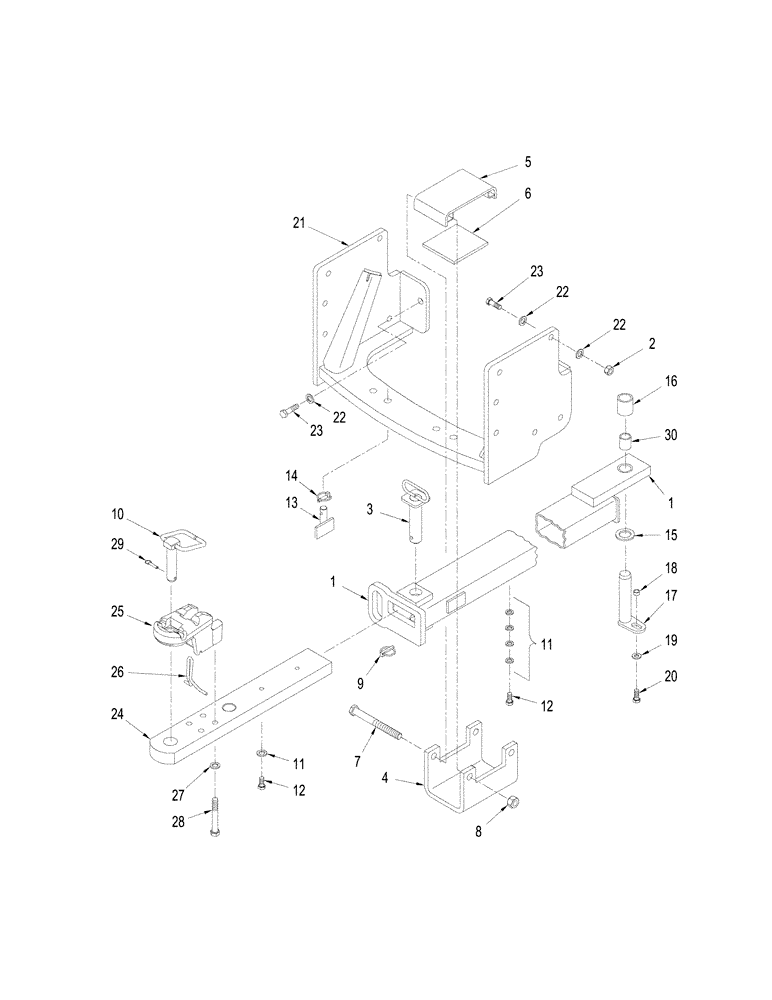

Схема запчастей Case IH STEIGER 330 - (09-08) - DRAWBAR - EXTENDABLE (09) - CHASSIS
12
30
8
24
22
18
11
29
22
23
26
17
22
11
3
27
9
20
6
25
12
16
4
19
15
2
28
10
13
21
23
1
14
7
1
5

Артикул

Название

Примечание

Количество

1

402661A1

DRAWBAR,2686.5mm L x 275mm W x 38.1mm Thk

Receiver

1шт.

2

829-1424

NUT,M24, Cl 10

12шт.

3

403199A1

HITCH PIN,46mm OD x 198mm L

1шт.

4

403194A1

YOKE

1шт.

5

403195A1

COVER

1шт.

6

435498A1

PLASTIC

Cover

1шт.

7

90-7494T1

SCREW,#0 - 8 x 9 1/4""

1 NC x 9-1/4"

2шт.

8

429-1016

NUT,1"-8, G8

2шт.

9

19-1041

LOCK PIN,7/16" x 2"

1шт.

10

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

13

403196A1

PIN

2шт.

14

19-6056

LOCK PIN,7/16" x 1 3/4"

2шт.

15

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4" x 2-3/4" x 1/4"

1шт.

16

361696A2

SPACER

1шт.

17

195941A1

PIN,44.37mm OD x 205mm L

1шт.

18

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

19

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

87441225

HANGER

Without Three Point Hitch

1шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

23

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

24

359506A1

DRAWBAR

1шт.

25

375719A1

STRAP

Hammer, Drop Pin

1шт.

26

375721A1

PIN

Drop Pin

2шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

28

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

4шт.

29

393878A1

PIN

1шт.

30

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

Drawbar Receiver

1шт.

Выбрано товаров: 30
