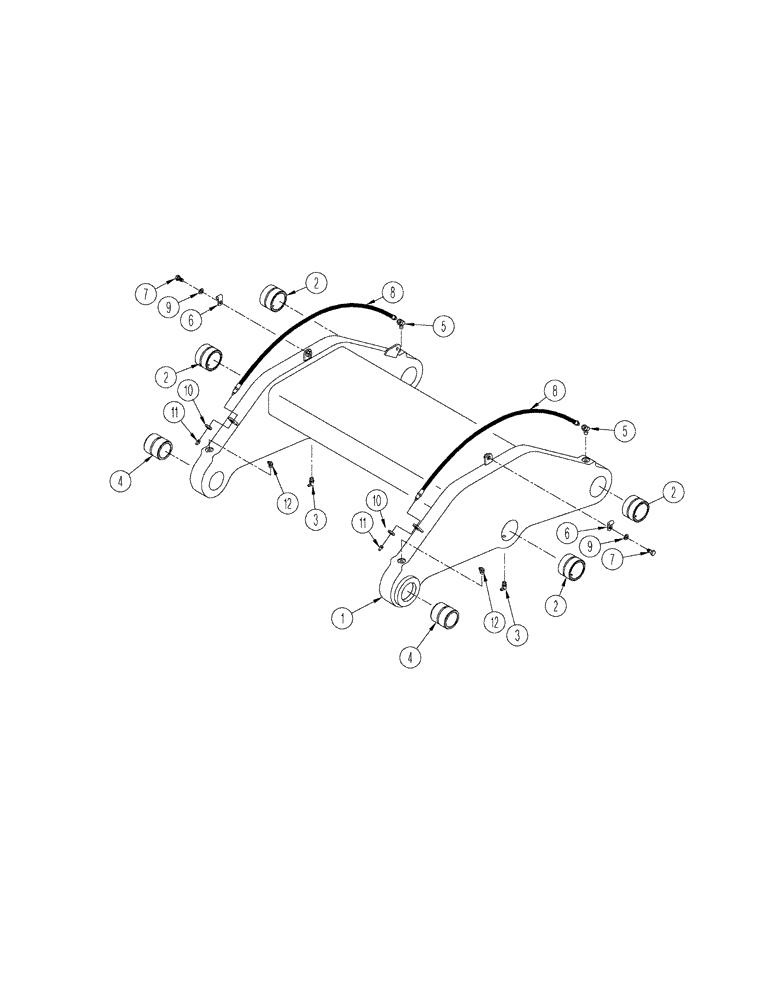

Запчасти Case IH STEIGER 330 (09-02) - ROCKSHAFT (09) - CHASSIS

403742A1

ROCKSHAFT

Inc. 1 - 5 & 12

1шт.

1

NSS

NOT SOLD SEPARAT

Rockshaft

1шт.

2

435500A1

BUSHING,51.11mm ID x 63.48mm OD x 44.45mm L

4шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

328586A2

BUSHING,44.57mm ID x 57.12mm OD x 56.69mm L

2шт.

5

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

2шт.

6

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

8

1339231C1

TUBE,737 mm Length

Grease, 737 mm (29")

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

F53473

LOCK NUT,1/8-27 NPSM

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.
